Hydraulic unloading & lifting equipment
Eight core series, all engineered and manufactured in our own factory in Xinxiang, Henan. Dimensions, capacity and control mode are customized to your trucks, cargo and site.

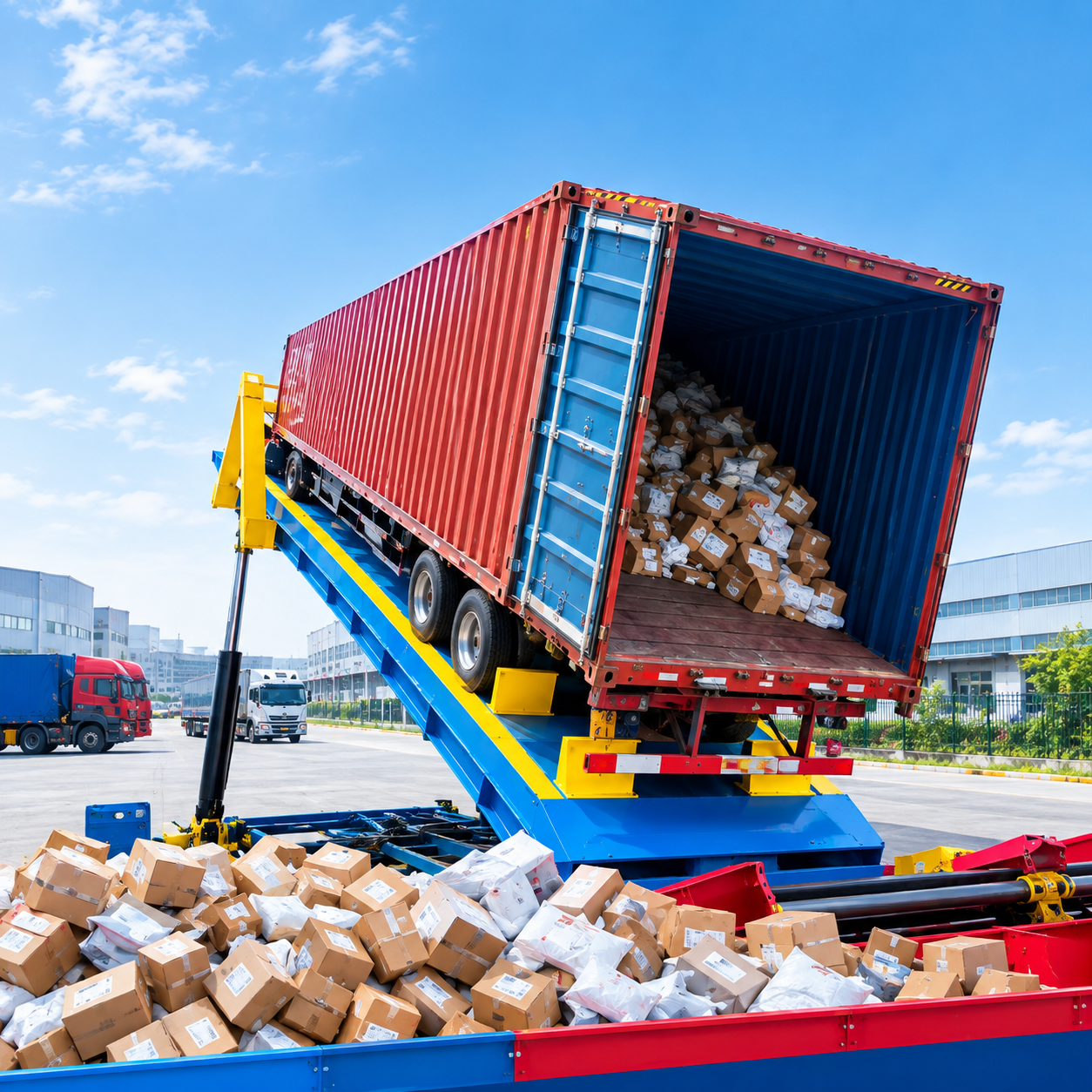

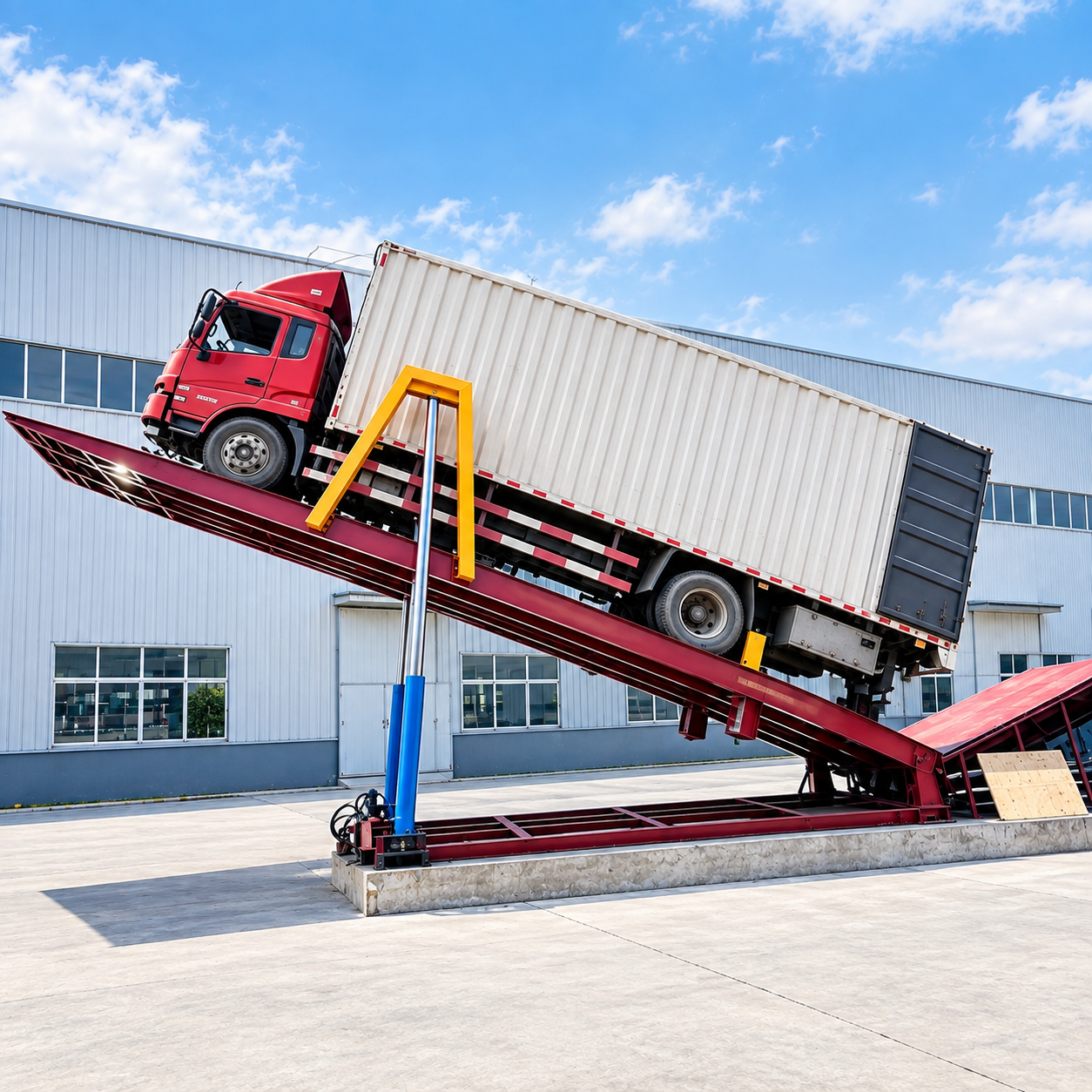

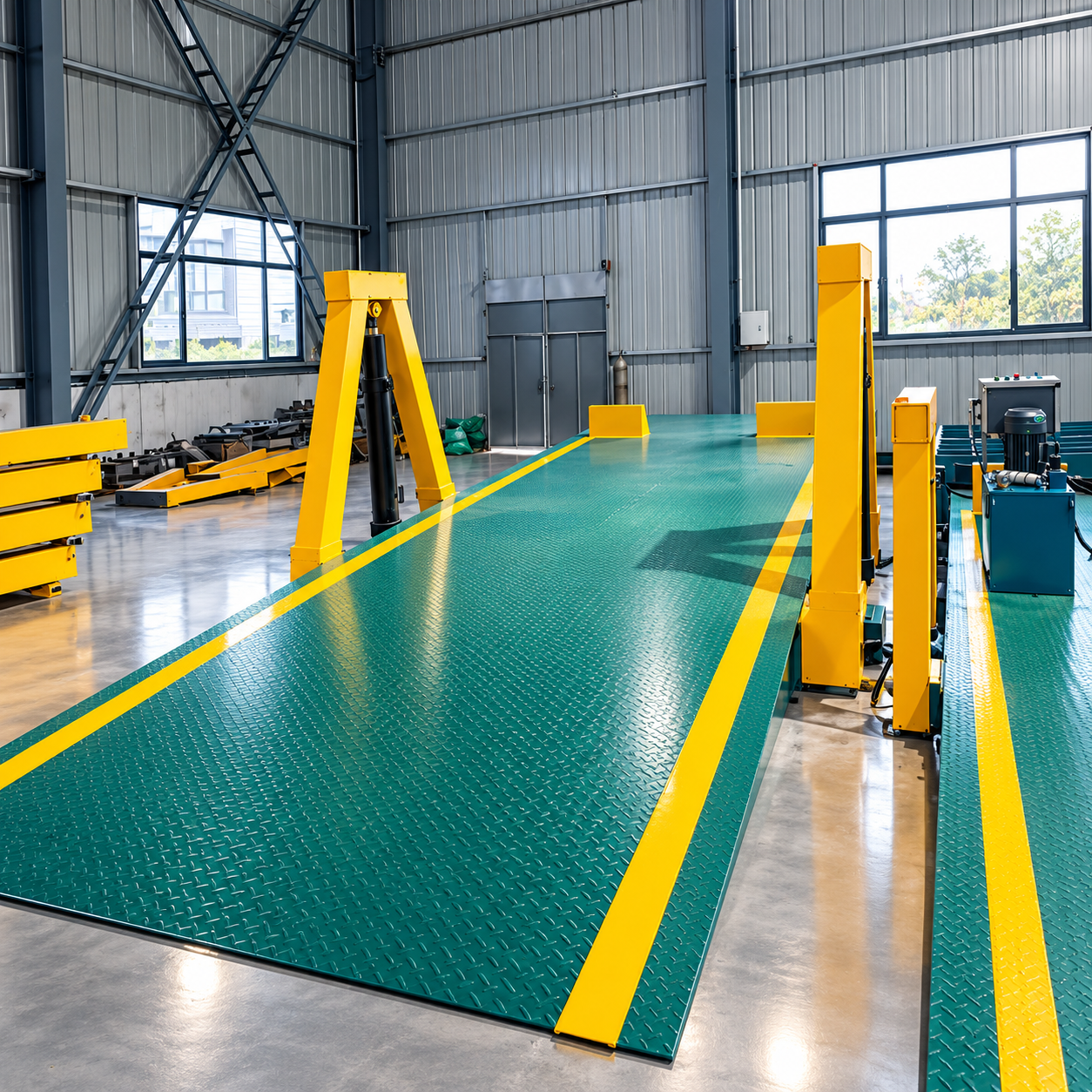

Hydraulic Turnover Unloader

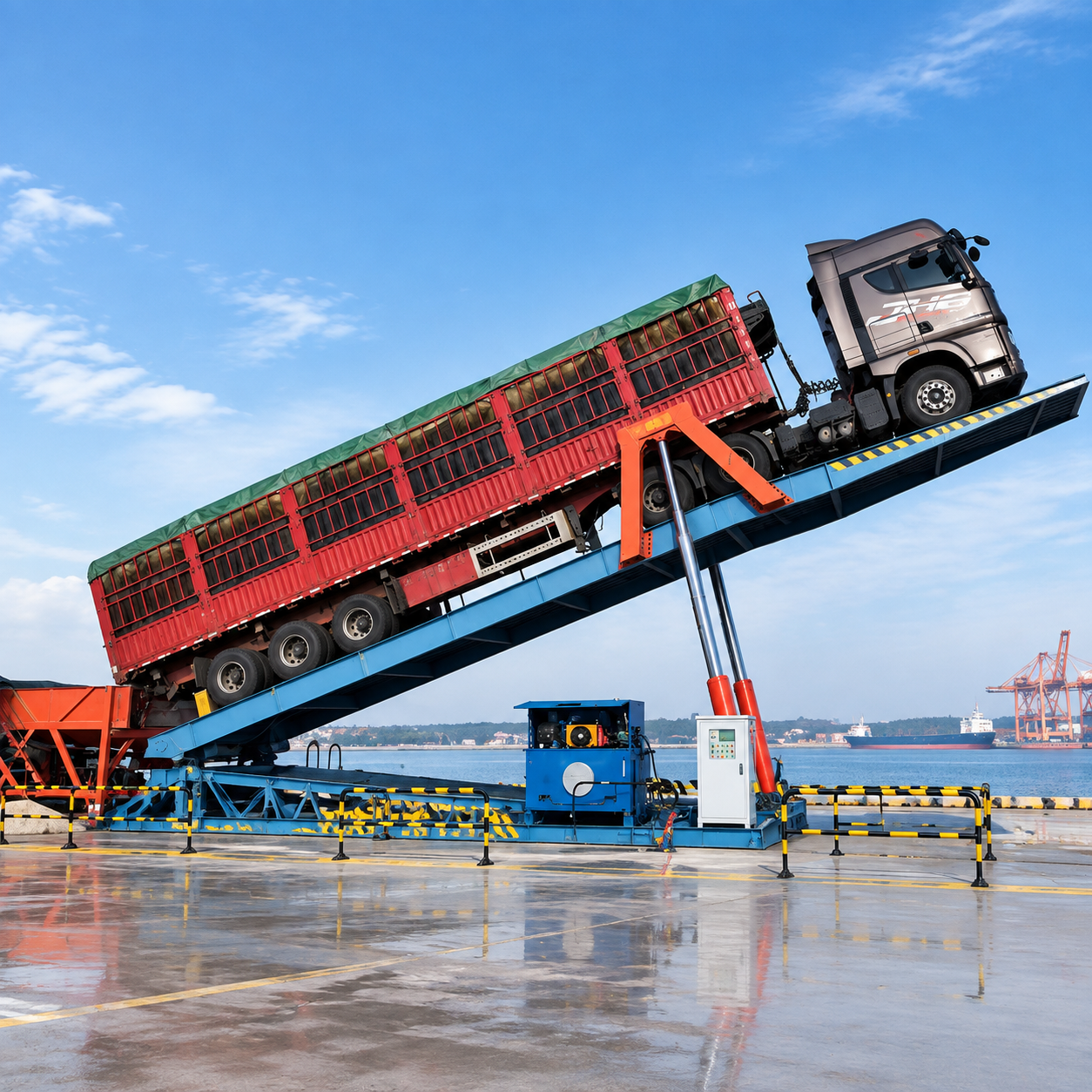

Foundation-free Rear-Tipping Unloader
Sits directly on compacted hard ground — no civil foundation works. Quick to install and relocate; ideal for leased yards and seasonal peaks.
Foundation-Type Unloader (Rear-Tipping)
Anchored on a concrete foundation for heavy loads and continuous daily operation — maximum stability and longest service life.

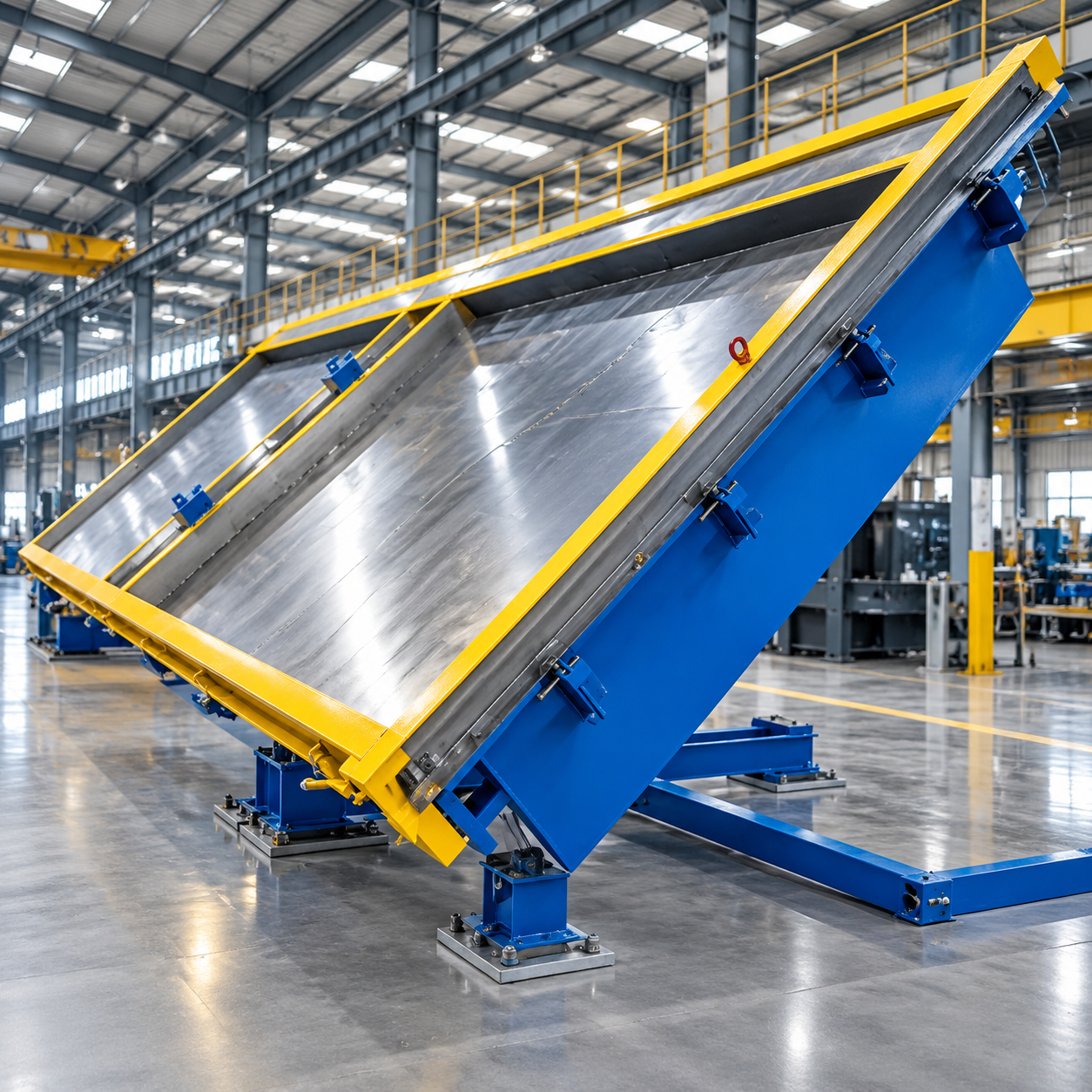

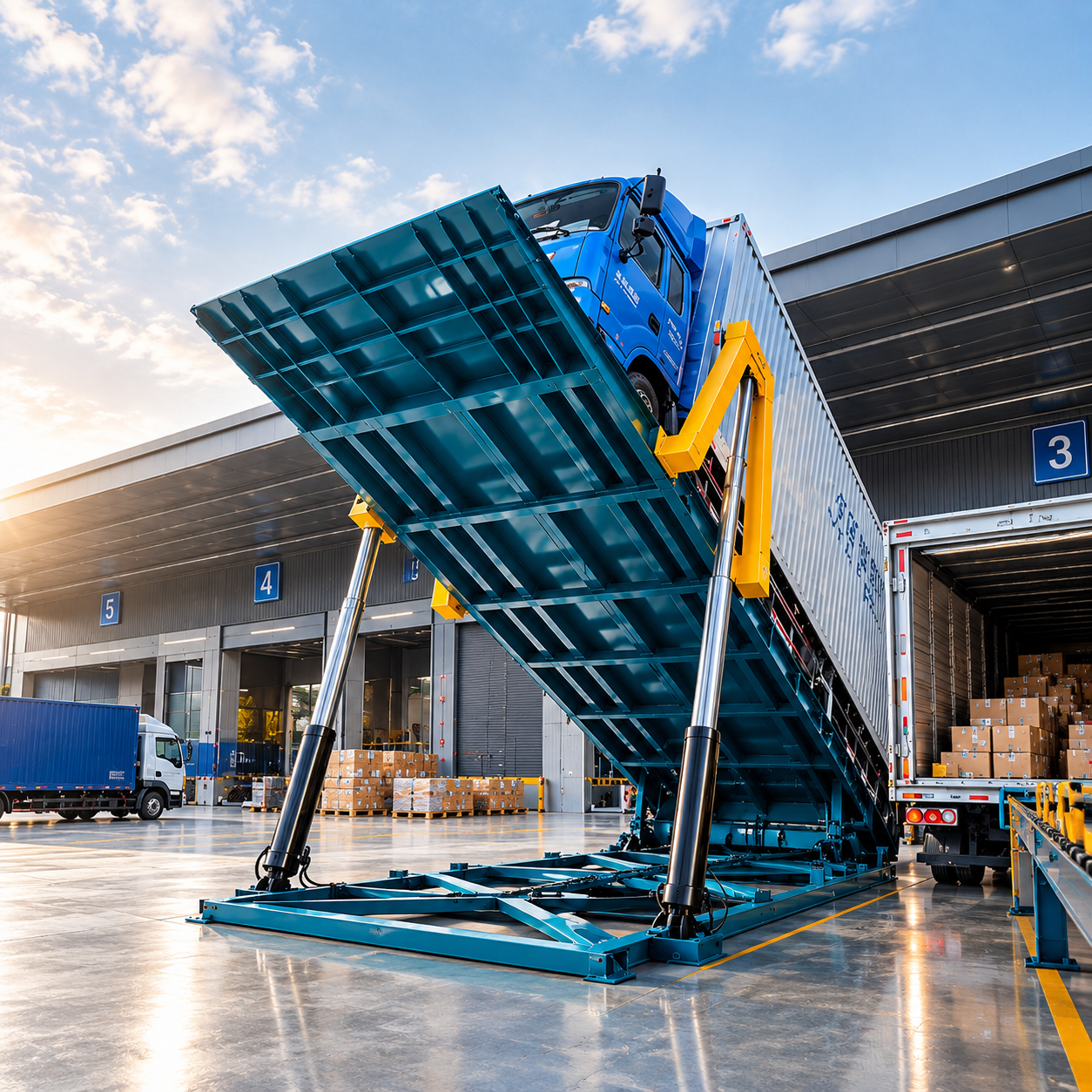

Foundation-Type Side-Tipping Unloader
Tips to the side for narrow yards, silo inlets and conveyor-fed lines where rear clearance is limited.
A hydraulic tipping platform that unloads bulk and bagged cargo from trucks that have no self-unloading function. The platform lifts and tilts the whole vehicle so the material slides out by gravity — dramatically cutting unloading time and labour cost. The machine uses an electro-hydraulic integrated control system with well-known brand electrical components for stable operation, high safety, high efficiency and low energy consumption. Widely used for grain, feed, potato, wood, coal, stone and cement-type bulk materials in grain, food, sugar, coal, building material, chemical, metallurgy, mining, port and power industries.
Key features
- Model 01 · foundation-free rear-tipping — deploy on any hard ground
- Model 02 · foundation-type rear-tipping — for heavy-duty cycles
- Model 03 · foundation-type side-tipping — for narrow yards
- Electro-hydraulic integrated control, one-man operation
- Anti-slip platform surface and safety support legs
- Foundation drawing and load calculation provided
| Technical parameters | |
|---|---|
| Model series | QC-HU series · 3 models — all built to order |
| Truck types | 4.2 m / 6.8 m / 9.6 m and longer trucks |
| Loading capacity | Customized to truck & cargo weight |
| Platform size | Customized to your yard |
| Tipping angle | Engineered for smooth material flow |
| Control system | Electro-hydraulic integrated, pendant / remote |
| Power supply | 380 V / 50 Hz, 3-phase (customizable) |
| Surface treatment | Shot blasting + industrial anti-corrosion coating |
| Options | Side walls, dust cover, weighing system, control cabin |
Every unloading platform is engineered around your truck, cargo and available yard space — dimensions, tipping angle and foundation are confirmed with a drawing before production.

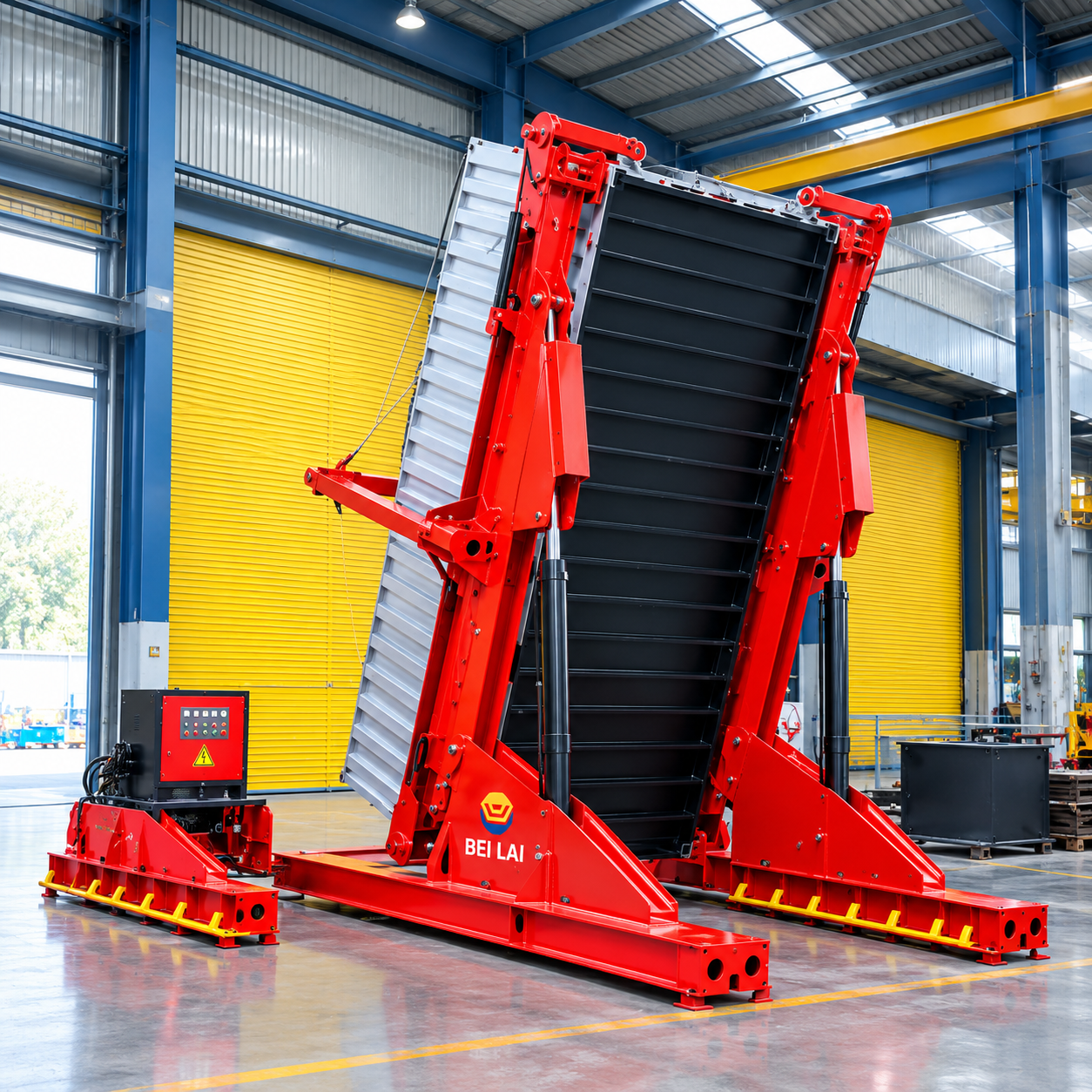

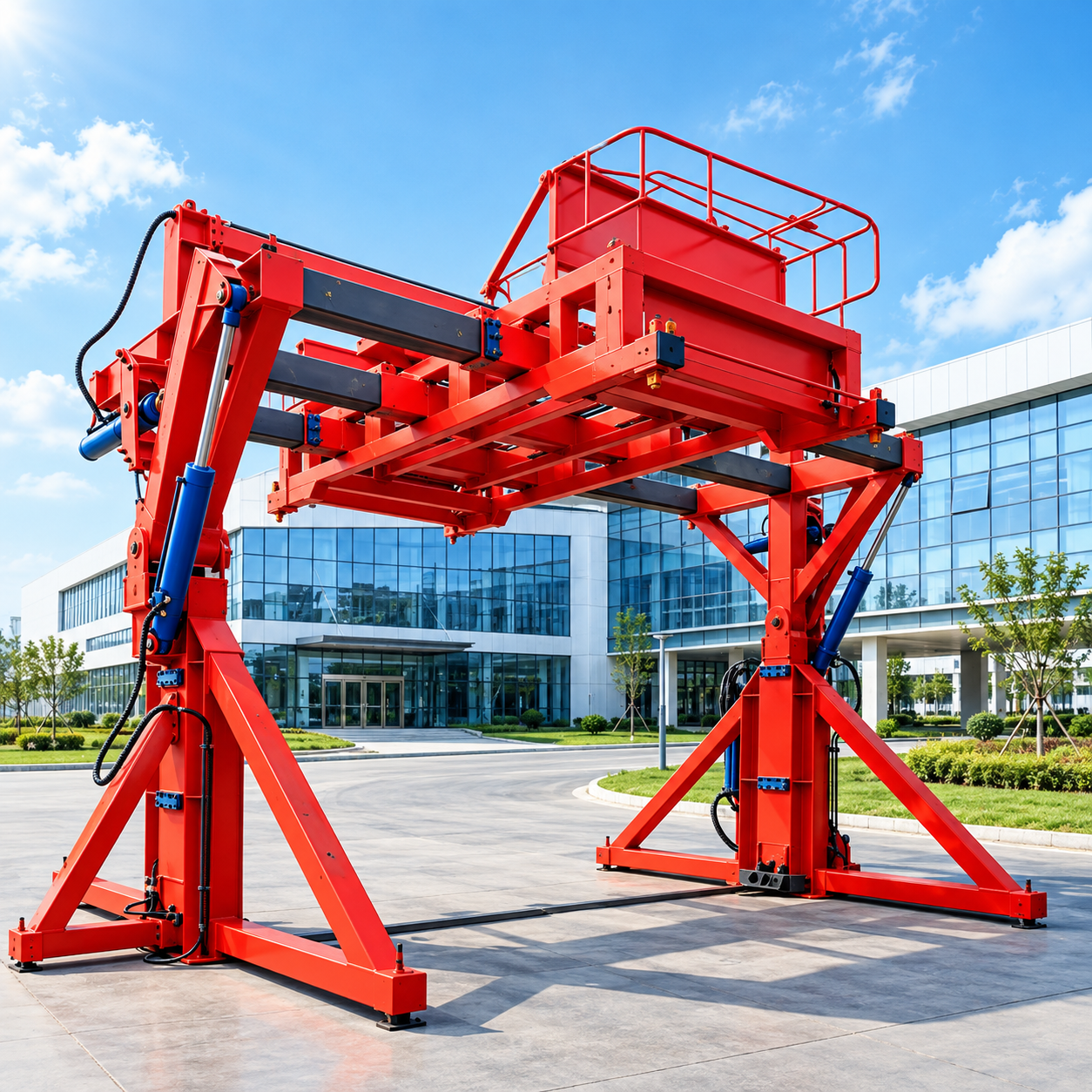

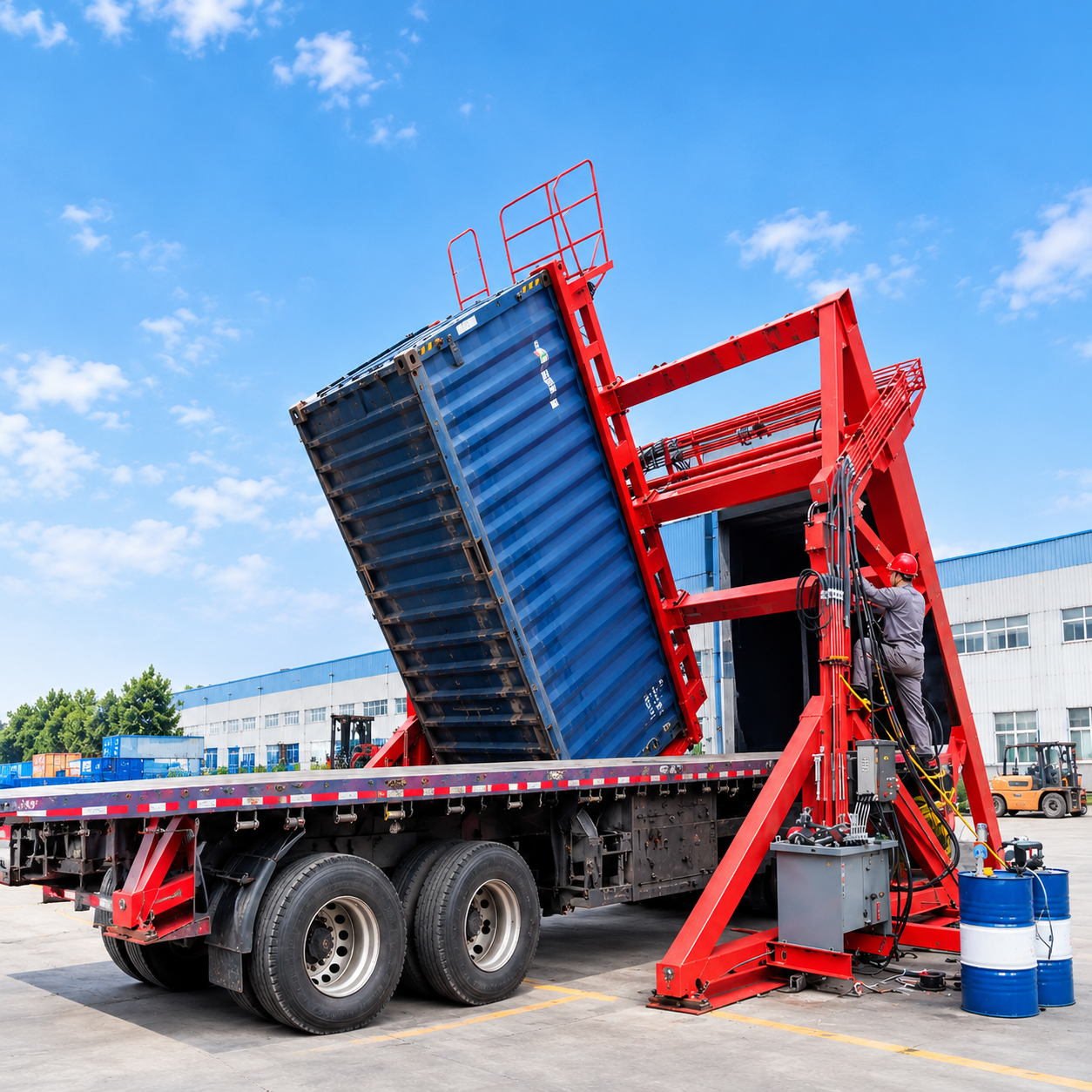

Container Turnover Machine
Equipment that turns containers up and down, left and right, to load or unload the goods inside quickly. By flipping the container instead of emptying it manually, handling efficiency is greatly improved and cargo damage caused by improper manual unloading is avoided. The machine works with a manipulator, guide rail and travelling wheels: the hook releases, the manipulator travels along the rail and turns the container to a vertical position, the hook re-engages and the container is laid onto the support frame, then returned to the horizontal position. Widely used in metallurgy, chemical, paper-making, building material and power industries, and can be used alone or together with cranes and forklifts.
Key features
- Turns containers in multiple directions for fast discharge
- Manipulator + guide rail design for stable, controlled motion
- Avoids cargo damage from rough manual unloading
- Saves labour and shortens vehicle turnaround time
- Can work stand-alone or combined with overhead cranes
- Heavy-duty welded frame with safety interlock
| Technical parameters | |
|---|---|
| Model series | QC-CT (built to order) |
| Container size | 20 ft / 40 ft and customized |
| Turnover direction | Up / down and left / right |
| Drive | Hydraulic power unit |
| Control | Pendant control / remote control |
| Capacity | Customized to container and cargo weight |
| Installation | Foundation pit or surface-mounted, to your site |
Container size, turnover direction and mounting method are confirmed against your handling flow before production.

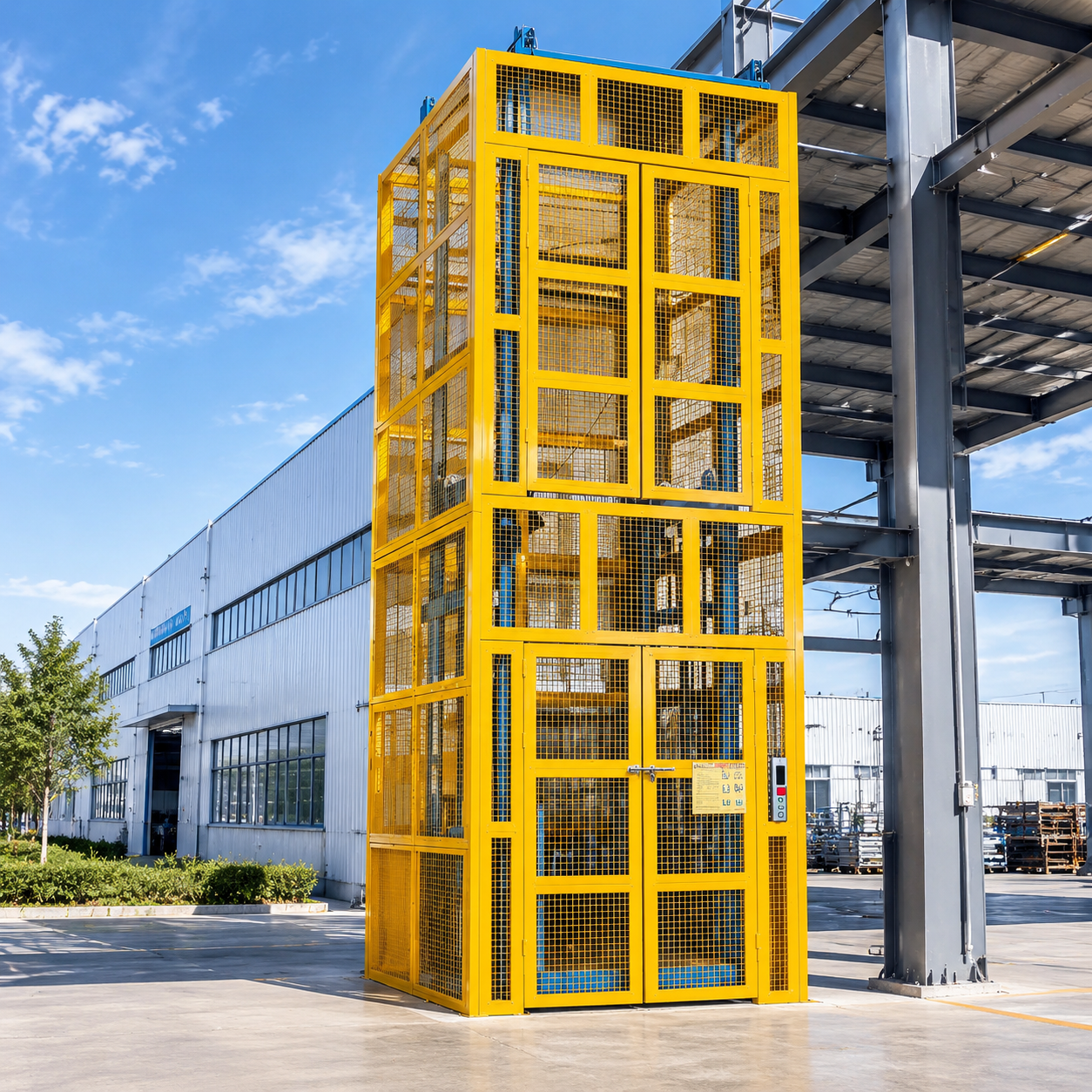

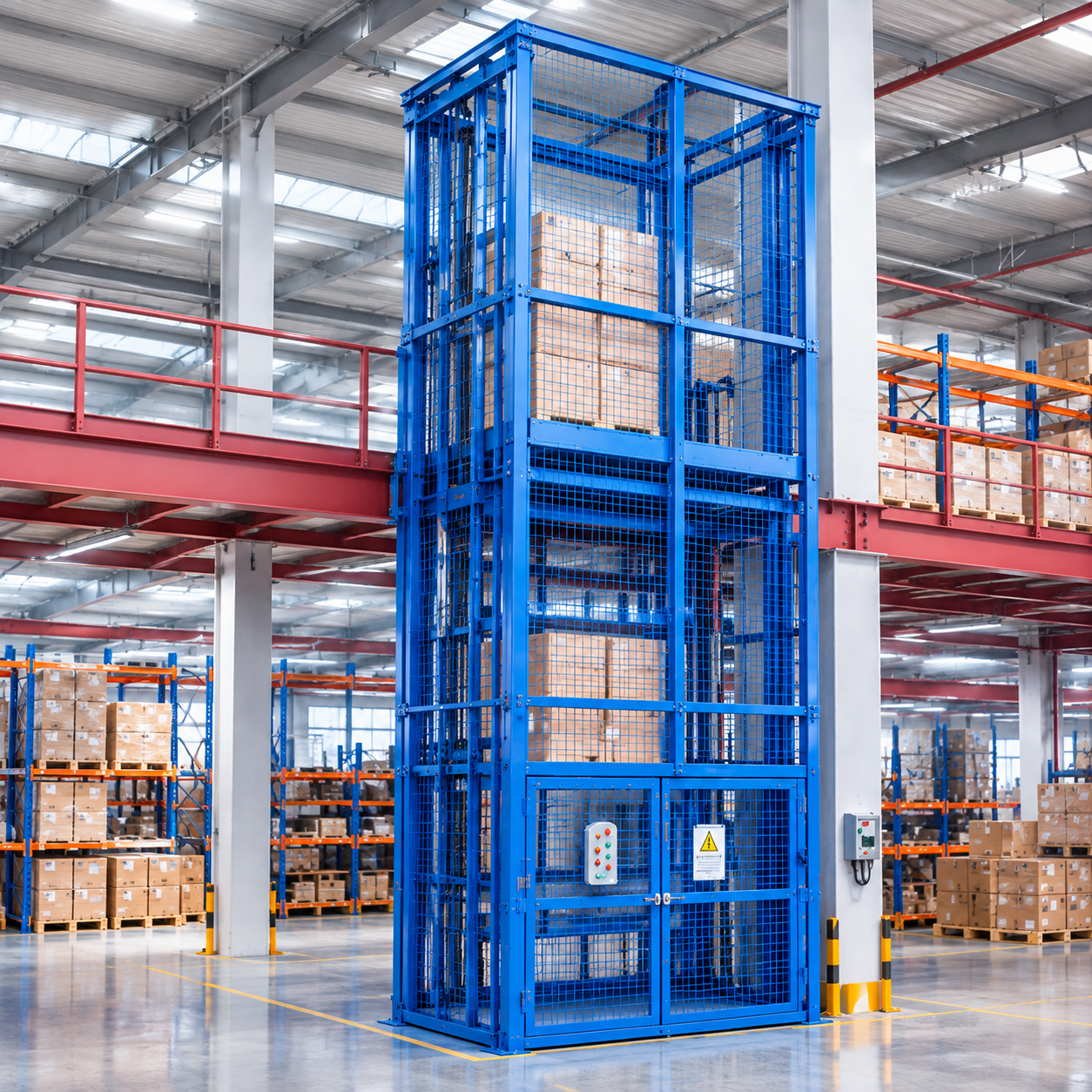

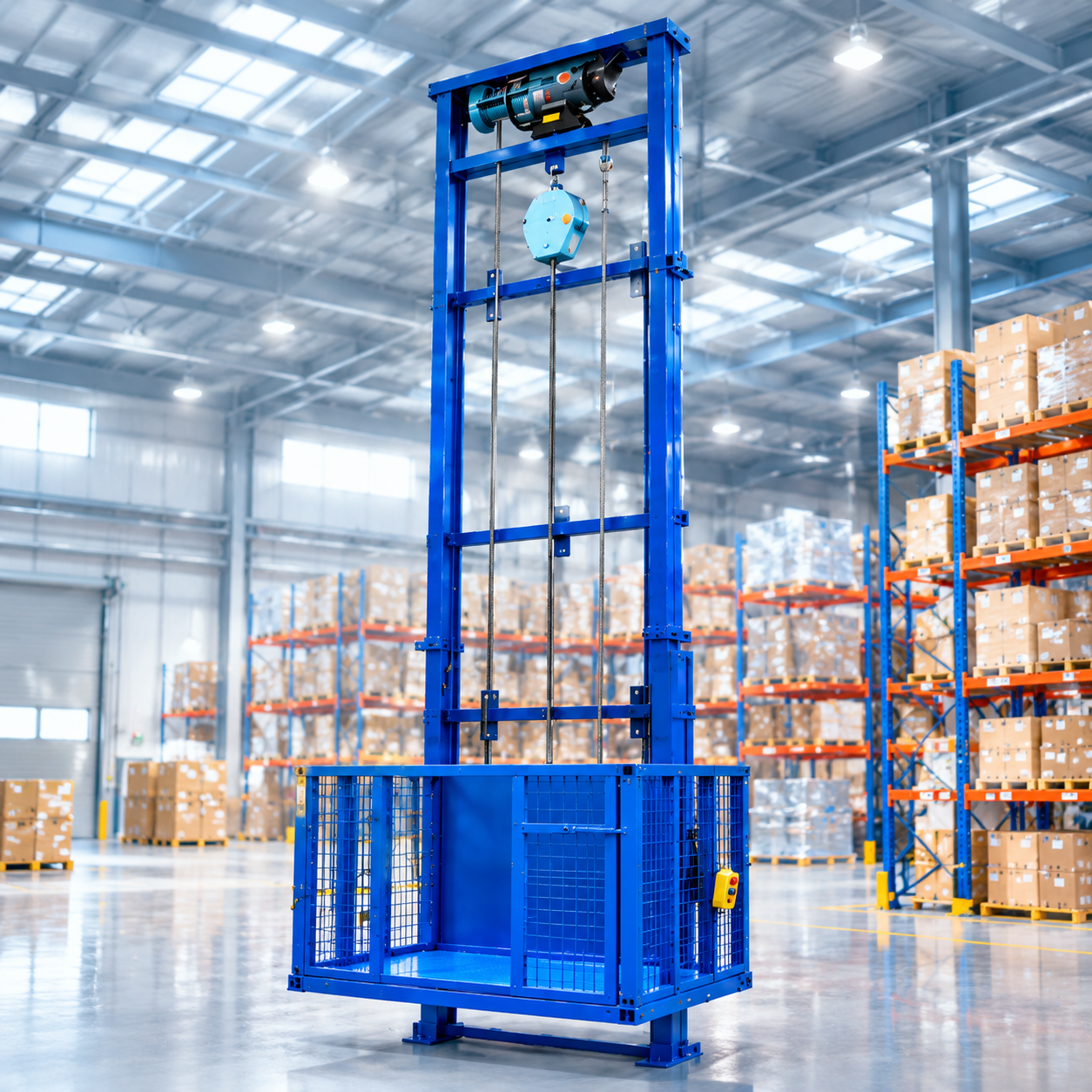

Guide Rail Hydraulic Lift Platform
A non-scissor hydraulic lifting platform used for transporting goods between floors in industrial buildings, restaurants and hotels. Its minimum platform height is only 150–300 mm, which makes it especially suitable for workshops where no pit can be dug and where no upper suspension point is available. It is available in single-column, double-column and four-column structures, runs smoothly and is simple and reliable to operate — an economical and easy way to move hydraulic and electrical goods vertically. Capacity, number of stops and dimensions are designed according to customer requirements. Indoor and outdoor versions, rolling shutter doors, stainless steel cabins, protective mesh and food-service lifts (dumbwaiters) are available.
Key features
- Minimum height only 150–300 mm — no deep pit required
- No upper suspension point needed
- Single column / double column / four column configurations
- Smooth, simple and reliable operation
- Optional stainless steel cabin, mesh enclosure or roller shutter
- Ideal for multi-storey warehouses, workshops and restaurants
| Technical parameters | |
|---|---|
| Model series | QC-GR (built to order) |
| Structure | Single-column double-rail / double-column four-rail / four-column eight-rail |
| Min. platform height | 150–300 mm |
| Rated load | Customized |
| Lift height / stops | Customized to your building |
| Cabin options | Stainless steel · mesh · roller shutter · open platform |
| Control | Call button on each floor + control panel |
| Safety devices | Anti-fall device, limit switches, hydraulic lock, emergency stop |
| Applications | Factory, warehouse, cold store, hotel, restaurant, car lift |
Send us the floor height, goods size and building structure — we will propose the column type and cabin option that fits.

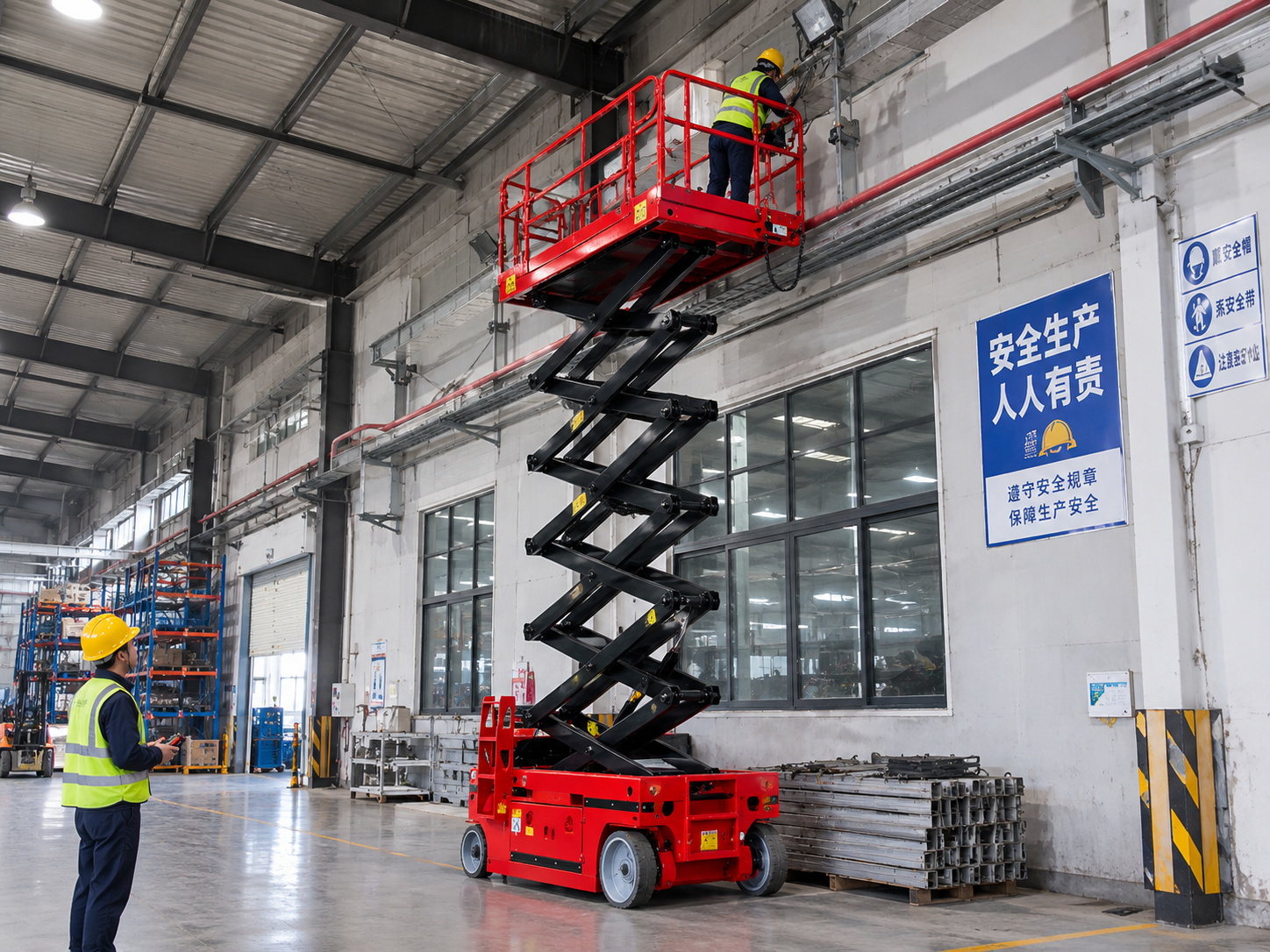

Shear Fork Hydraulic Lift Platform
Electric scissor lifting equipment that uses electric power to lift, load and unload. It is used for aerial work in enterprises, chemical plants, municipal projects, power and transport industries, and is easy to move, easy to learn, simple to operate, with a large working area, wide range and good balance. Our scissor lifts are divided by travelling method into mobile, stationary and vehicle-mounted types. Height and dimensions can be customized.
Key features
- Mobile, stationary and vehicle-mounted versions
- Working height 2–12 m, load capacity 200 kg–1 t
- Large platform, wide working range, good balance
- High-strength manganese steel structure
- Height and platform size fully customizable
- Safety rails, emergency lowering and anti-slip platform
| Technical parameters | |
|---|---|
| Model | SJYZ0.3-12 (example of series) |
| Platform height | 12 m |
| Platform size | 2300 × 1170 mm |
| Load capacity | 320 kg |
| Overall dimensions | 2500 × 1170 × 1940 mm |
| Net weight | 2600 kg |
| Colour | Red / blue |
| Material | High-strength manganese steel |
| Customization | Both height and dimensions can be customized |
Stationary and vehicle-mounted variants are available on the same platform — tell us the working height and load needed.

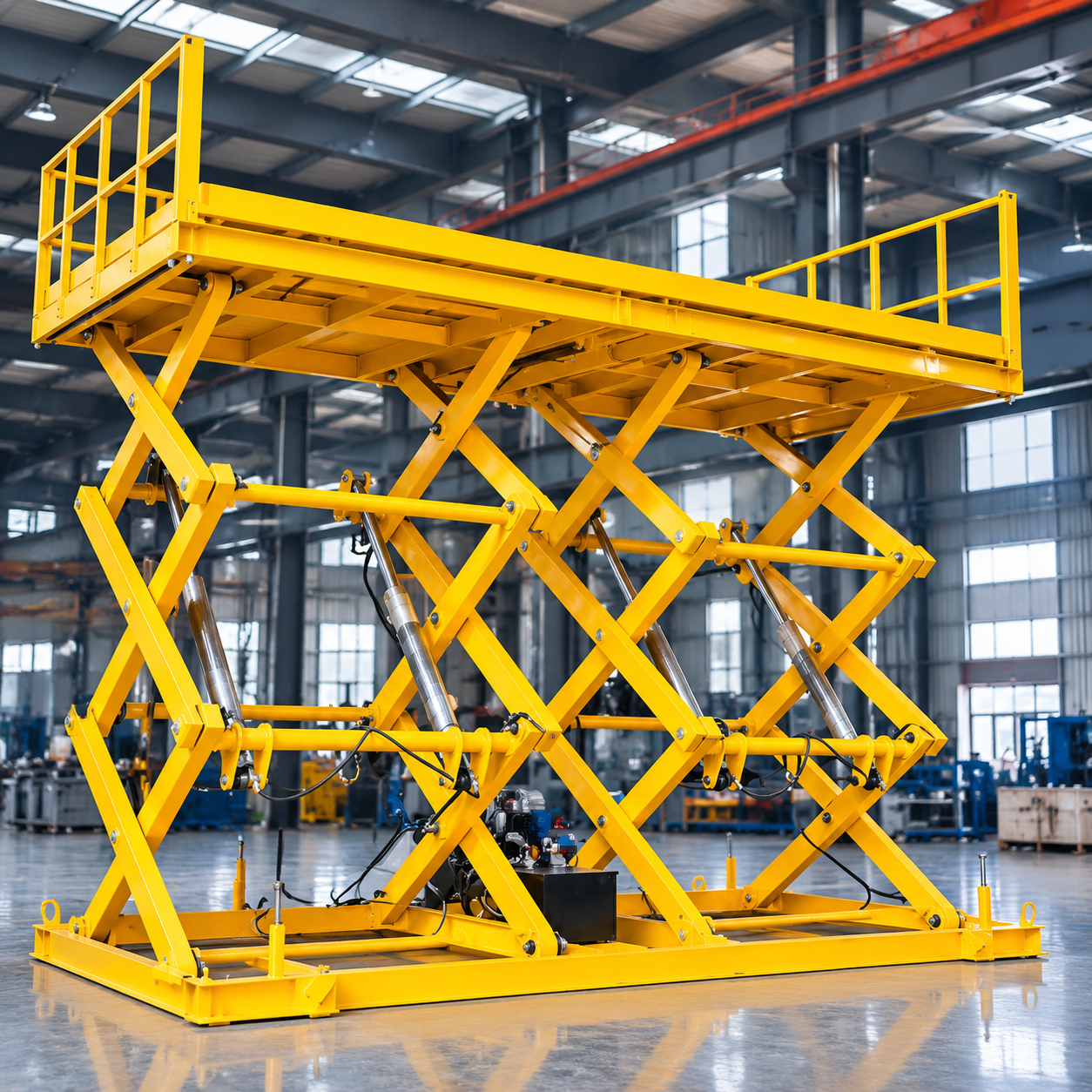

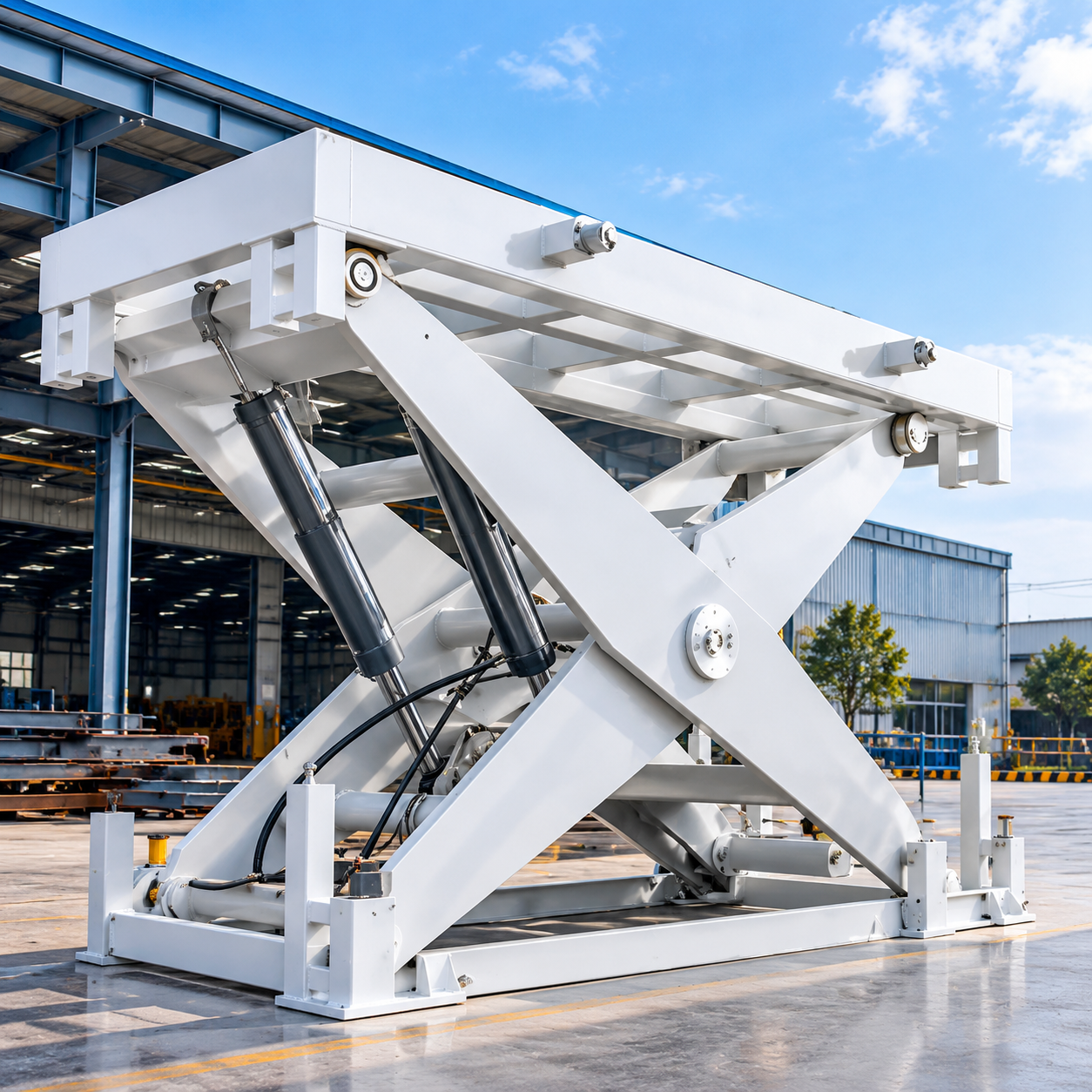

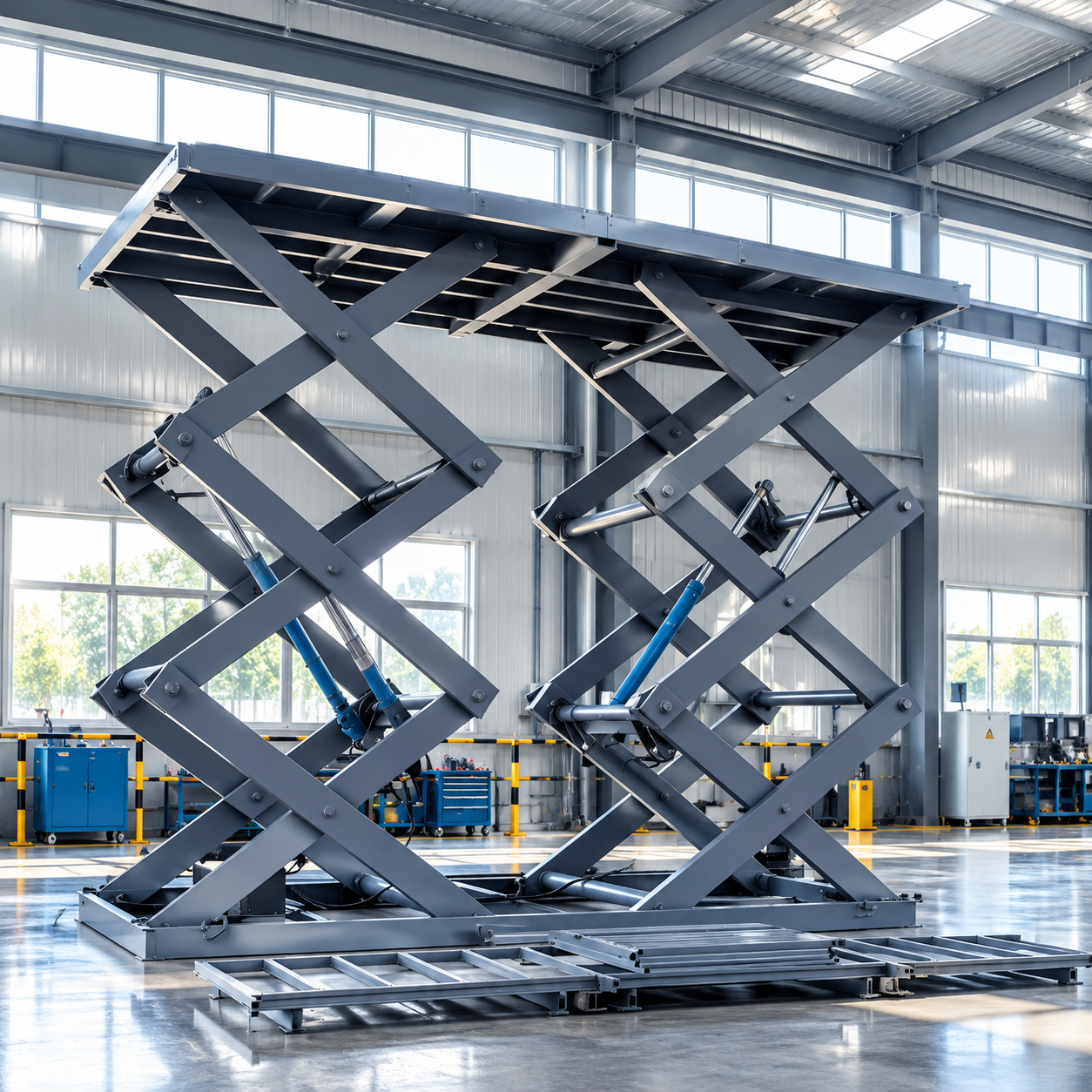

Fixed Scissor Lift Platform
The fixed scissor lift platform is hydraulically driven with strong load capacity and intelligent, easy operation. The whole machine is made of high-strength steel and the platform is fitted with safety guardrails for smooth, safe running. It is a fixed lifting device widely used in factories and warehouses for cargo conveying, work at height and loading/unloading assistance. Lifting height, load capacity and platform size are customized on demand, and built-in overload protection makes it ideal for continuous lifting at fixed indoor and outdoor points.
Key features
- Hydraulic drive — strong load capacity, smooth lifting
- High-strength steel frame with safety guardrails
- Intelligent control, simple and convenient operation
- Built-in overload protection as standard
- Lifting height, capacity & platform size built to order
- For fixed indoor & outdoor points, continuous duty
| Technical parameters | |
|---|---|
| Model series | Fixed scissor lift (built to order) |
| Lifting height | Customized to your site |
| Load capacity | Customized to cargo weight |
| Platform size | Customized to your cargo & pit |
| Structure | High-strength steel, safety guardrails |
| Control system | Electro-hydraulic, pendant / remote |
| Power supply | 380 V / 50 Hz, 3-phase (customizable) |
| Safety | Overload protection, stable lifting |
| Applications | Factory, warehouse, work at height, loading aid |
Lifting height, load capacity and platform size are all customizable — confirmed with a drawing before production for your exact working scenario.

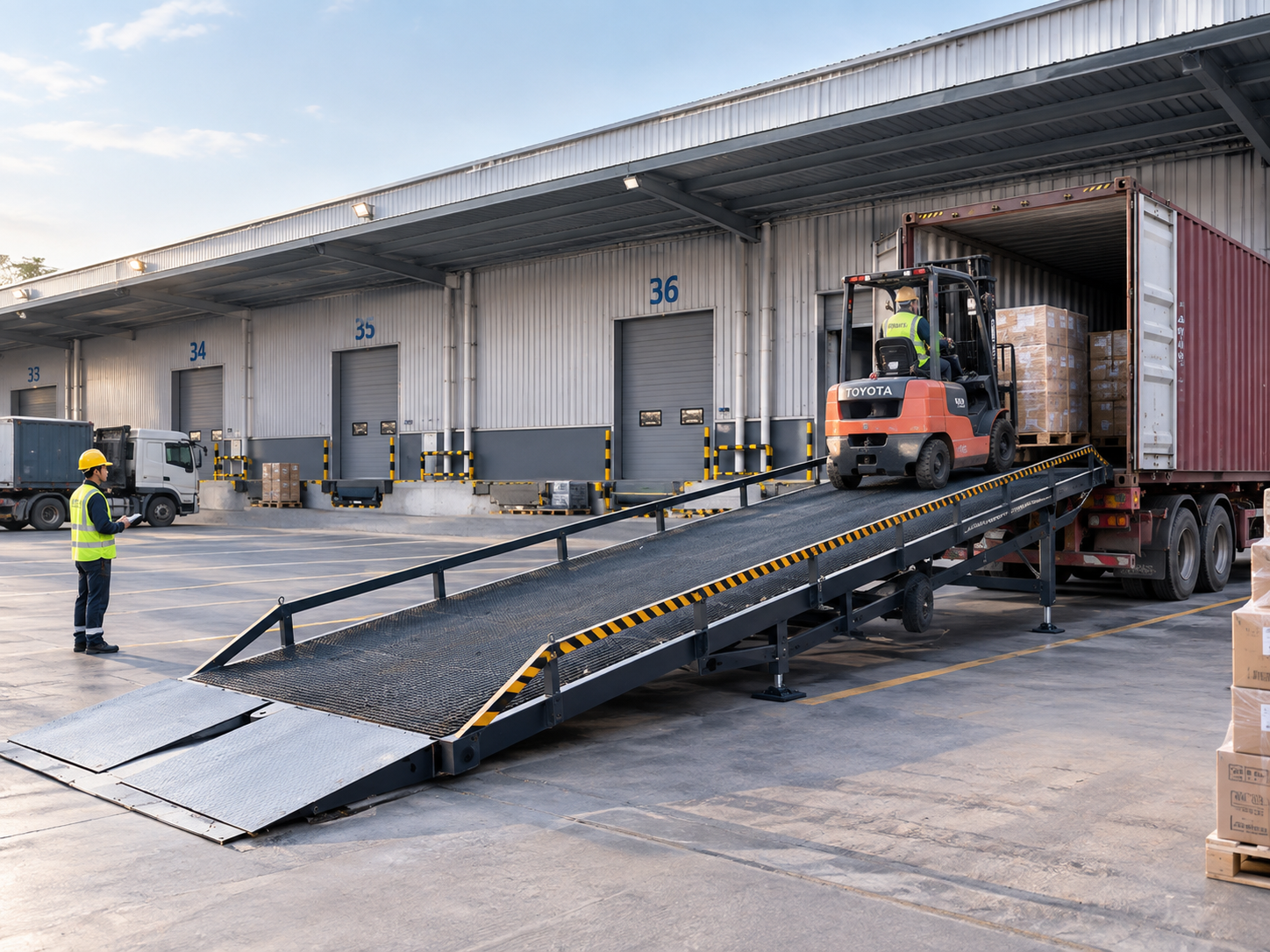

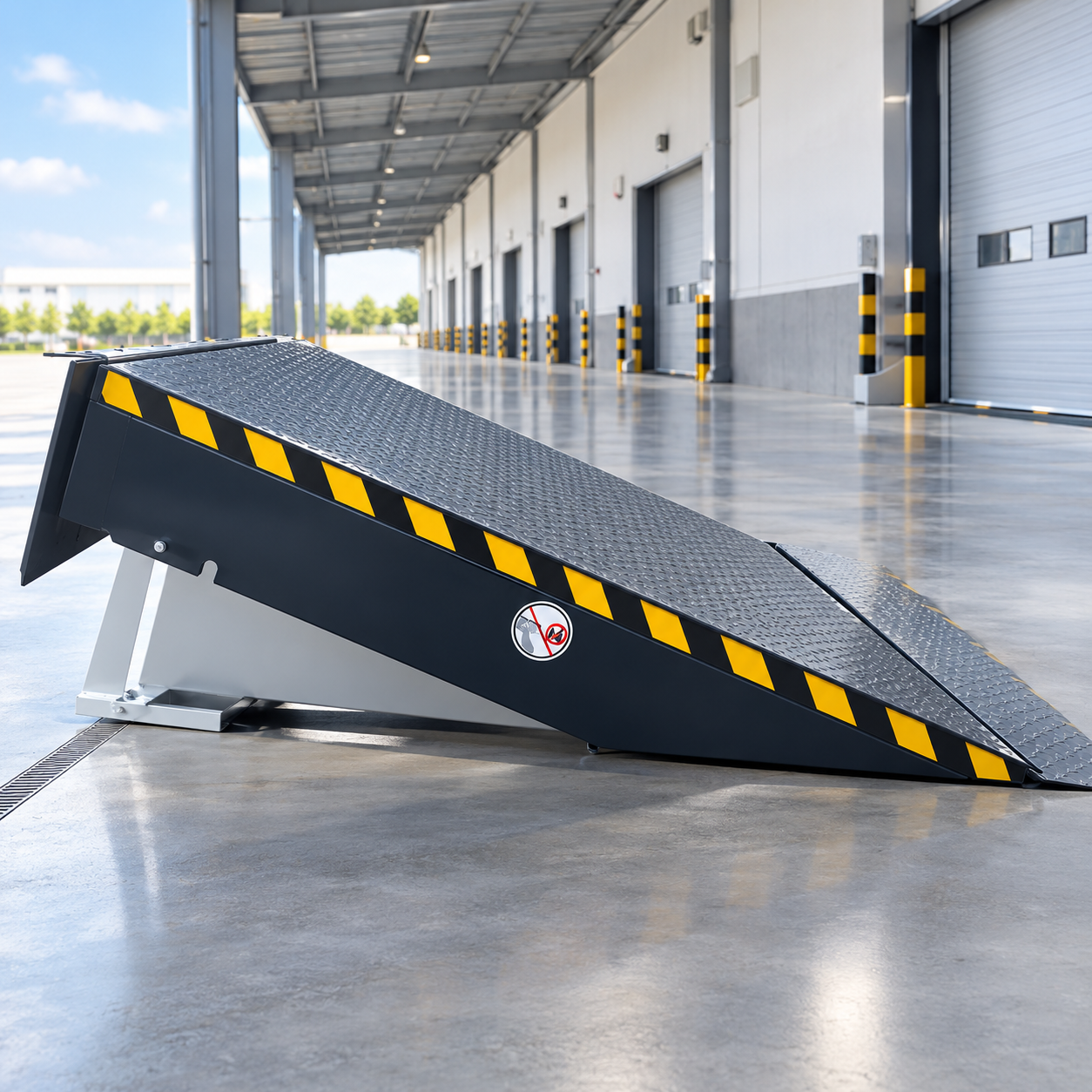

Boarding Bridge (Dock Ramp)
The boarding bridge is the loading and unloading link between a forklift and a truck. It is the starting point and the end point of the enterprise logistics chain, the equipment that makes product and cargo loading safe and efficient. The height of the loading and unloading operation platform is fixed, while truck box heights differ, so there is always a height difference or gap between the vehicle and the platform. Without a bridge, a forklift cannot drive directly into the truck to load or unload. The boarding bridge provides a reliable connection so forklifts can move in and out safely and quickly. Available as mobile and fixed types.
Key features
- Max. dynamic load 6 t, max. static load 6 t
- Max. width 2 m, max. length 4 m
- Fixed and mobile versions for different docks
- Anti-slip steel deck with side safety curbs
- Self-adjusting lip that follows truck box height
- Works with all common forklifts
| Technical parameters | |
|---|---|
| Model series | QC-BB (fixed / mobile) |
| Max. dynamic load | 6 t |
| Max. static load | 6 t |
| Max. width | 2 m |
| Max. length | 4 m |
| Type | Fixed boarding bridge / mobile boarding bridge |
| Deck | Anti-slip checkered steel plate with side curbs |
| Options | Hydraulic lifting, adjustable lip, support legs |
Larger capacities and longer lengths can be built to order for heavy forklifts and container loading.

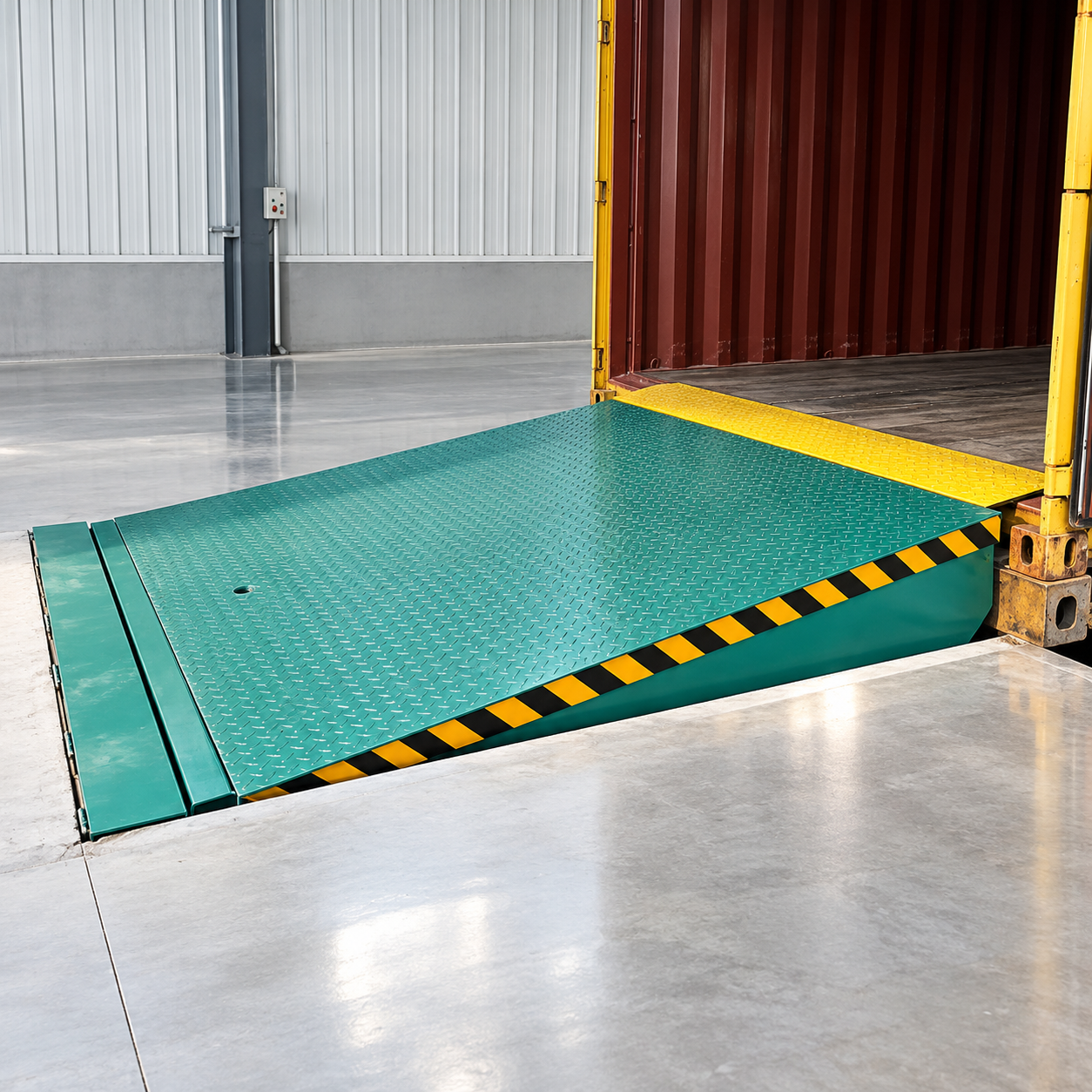

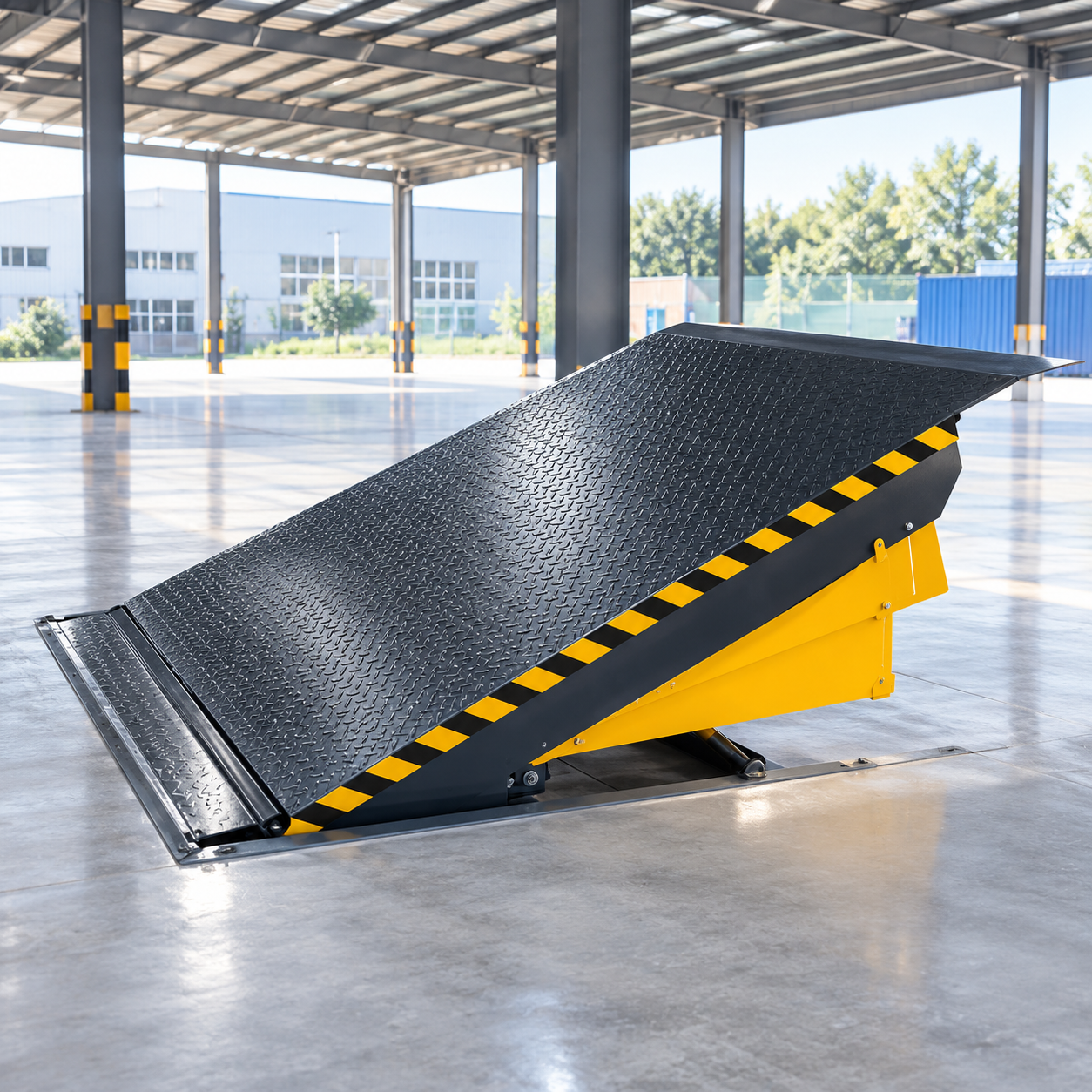

Fixed Dock Leveler
The fixed dock leveler is hydraulically driven and installed at the loading bays of warehouses and logistics parks. It connects the dock platform with the truck bed, eliminating the height difference between the vehicle and the platform so forklifts can drive in and out quickly for loading and unloading. The deck is made of anti-slip checkered steel plate — skid-proof and wear-resistant — with safety warning strips along the edges. Strong load capacity and stable running make it widely used in cold chain, express delivery, docks and wharves. Customization is supported, units are in stock for fast delivery, and lifetime maintenance service is provided — greatly improving loading and unloading efficiency.
Key features
- Hydraulic drive — smooth, stable and efficient
- Anti-slip checkered steel deck, wear-resistant
- Safety warning strips along the deck edges
- Strong load capacity for heavy forklift traffic
- Deck size & load capacity built to order
- In stock, factory direct — lifetime maintenance service
| Technical parameters | |
|---|---|
| Model series | Fixed dock leveler (built to order) |
| Load capacity | Customized to cargo & forklift weight |
| Deck size | Customized to your pit & truck fleet |
| Working range | Adjusts to different truck bed heights |
| Deck material | Anti-slip checkered steel plate |
| Drive | Electro-hydraulic, pendant / remote |
| Power supply | 380 V / 50 Hz, 3-phase (customizable) |
| Safety | Edge warning strips, stable support, overload protection |
| Applications | Cold chain, express delivery, docks, logistics parks |
Deck size, load capacity and pit dimensions are all customizable — confirmed with a drawing before production. Factory stock available for fast delivery, with lifetime maintenance service.

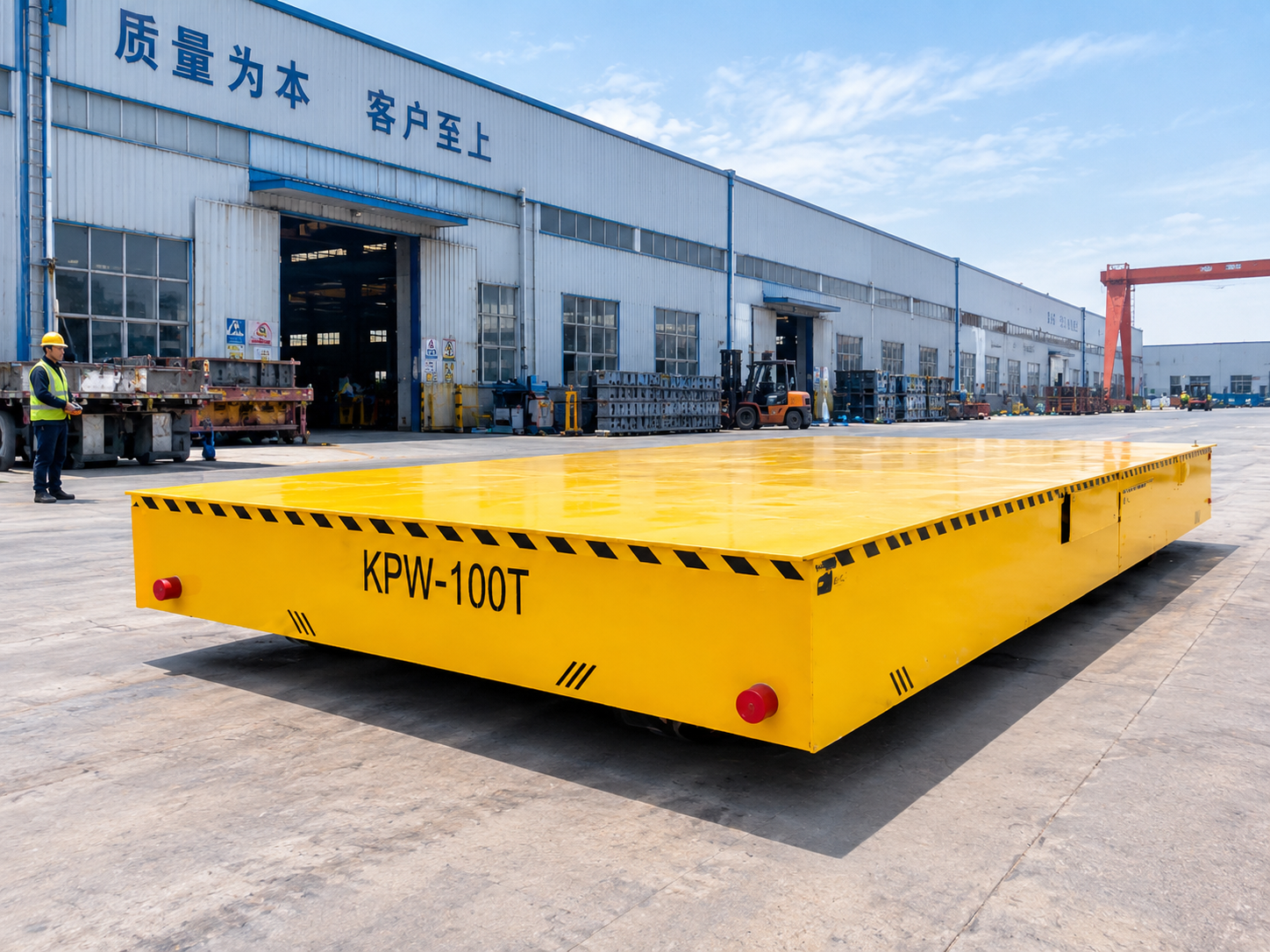

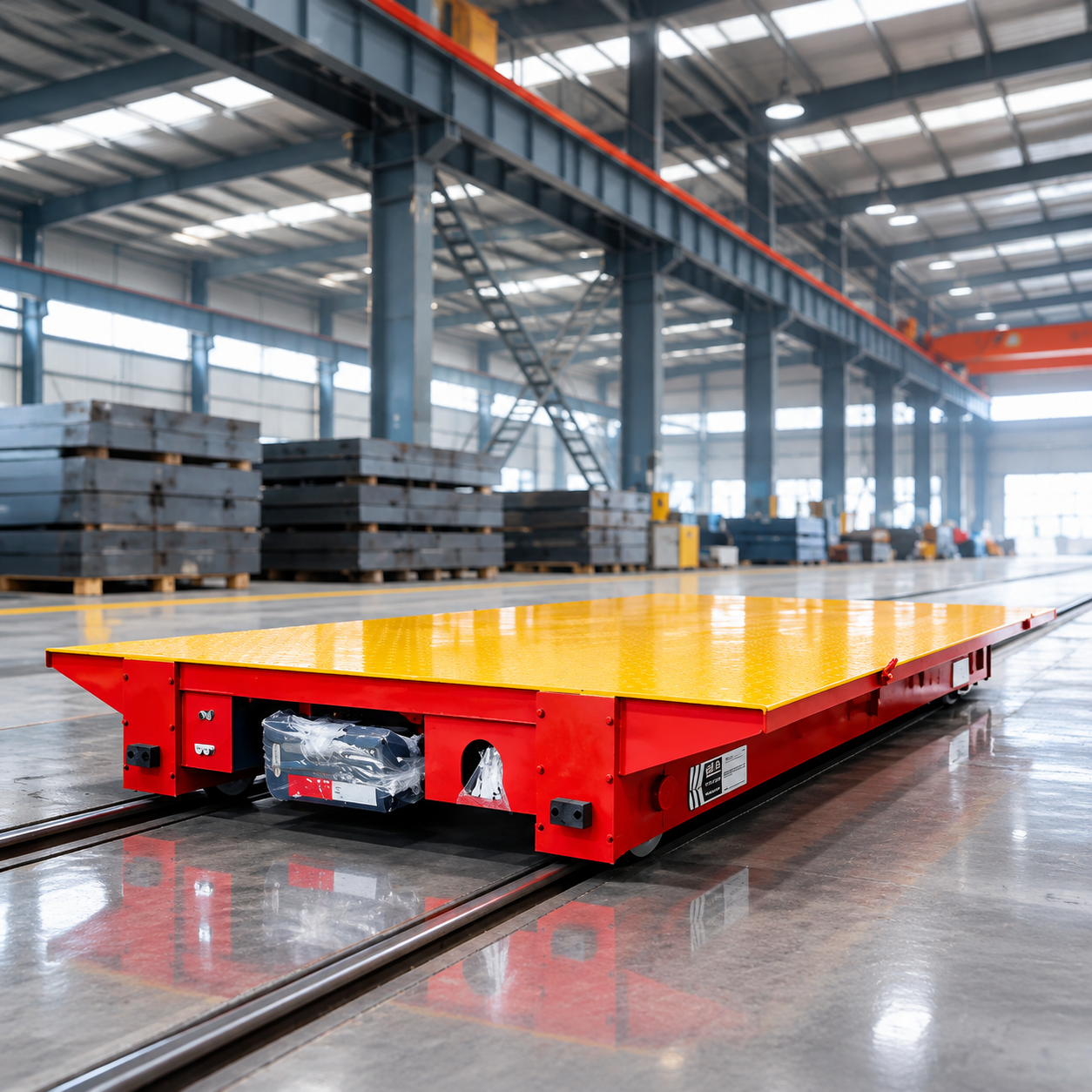

Electric Flat Car
The electric flat car — also called a cross-bay car or transfer trolley — is a rail-guided (straight or curved) transport vehicle of the KP series. It has a simple structure, is convenient to use and easy to maintain, has a large carrying capacity and does not pollute the working environment. It is widely used in machinery manufacturing plants, warehouses and metallurgical plants for transport inside and outside workshops, and for moving heavy items across bays together with cranes: raw materials, forgings, welded parts, machined parts and finished products. Our flat cars are built on a box-type structure with two load-bearing girders, giving greater strength and a higher safety factor than old-style cars that rely on four corner supports. New models can use centralized transmission or dual drive with a soft-start braking motor, so the car runs more smoothly and brakes more safely.
Key features
- Rail-guided travel, straight or curved track
- Box-type double-girder structure for higher load capacity
- Centralized or dual drive with soft-start brake motor
- Easy maintenance and low operating cost
- No pollution — ideal for indoor workshops
- Pendant, remote or wireless control
| Technical parameters | |
|---|---|
| Model series | KP series |
| Track | Straight or curved rail |
| Structure | Box-type, two load-bearing girders |
| Drive | Centralized transmission or dual drive |
| Motor | Soft-start braking motor |
| Load capacity | Customized to your load |
| Control | Pendant / remote / wireless |
| Power supply | Cable reel or battery (optional) |
| Safety | Limit switches, buffers, warning light, emergency stop |
Track layout, load capacity and power supply method are engineered to your workshop layout.
Express Parcel Unloading Equipment
A compact hydraulic unloading machine designed for express delivery stations and logistics hubs, where parcels have to be moved in and out of vans and trucks many times a day. With a carrying capacity of 8–30 t it suits 4.2 m, 6.8 m and 9.6 m express vehicles. It speeds up vehicle turnover, reduces manual labour cost, improves operating safety and helps express and logistics companies gain a competitive edge.
Key features
- Carrying capacity 8–30 t
- Suits 4.2 m / 6.8 m / 9.6 m express vehicles
- Compact size — works in tight express stations
- Hydraulic lifting, fast and stable
- Simple control, labour-saving operation
- Ideal for express stations, logistics parks, warehouses and e-commerce
| Technical parameters | |
|---|---|
| Model series | QC-EX (express series) |
| Carrying capacity | 8–30 t |
| Suitable vehicles | 4.2 m / 6.8 m / 9.6 m trucks |
| Platform size | Customized to station layout |
| Operation | One-man control, automatic sequence |
| Installation | Surface-mounted, minimal civil work |
| Applications | Express station, logistics park, warehouse, e-commerce |
Also available: dumbwaiters (food lifts) and car lifts for restaurants, hotels and vehicle workshops.
Parts & Components

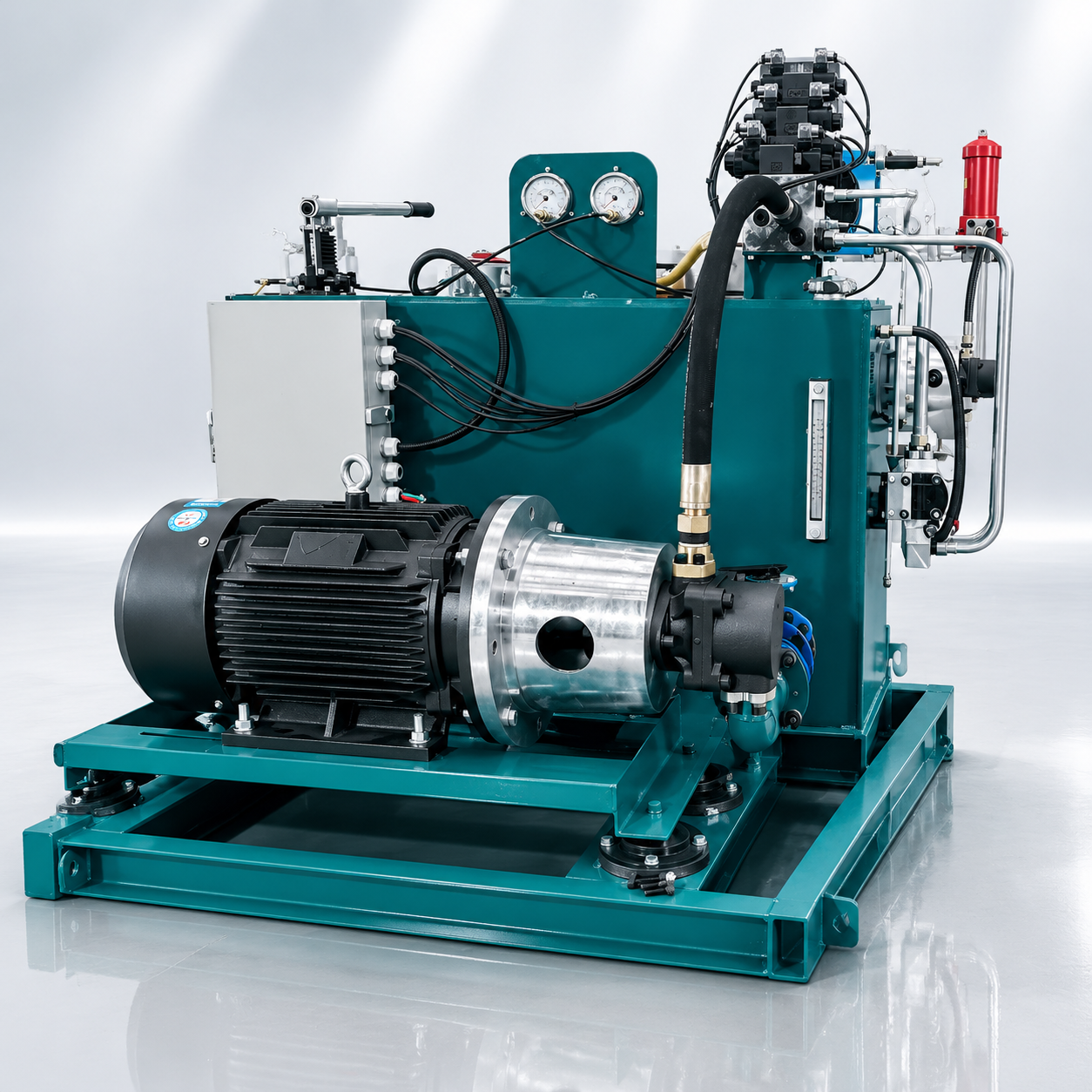

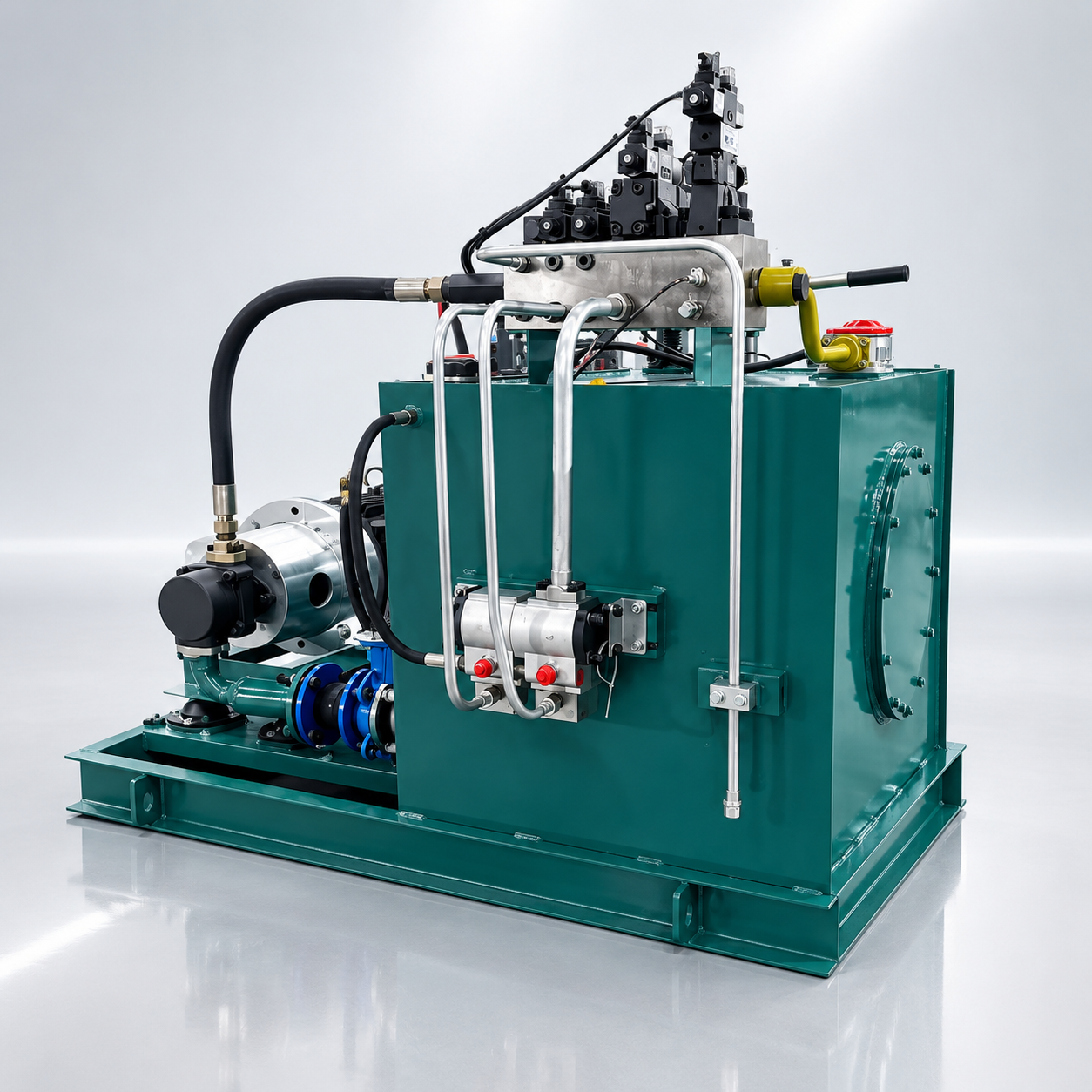

Hydraulic Power Unit
The hydraulic power unit is the power source of the hydraulic system, delivering hydraulic oil to all kinds of hydraulic equipment for a stable power supply. The complete unit consists of an electric motor, hydraulic pump, oil tank, control valve group and pressure gauges. Compact in structure and fitted with a vibration-damping base, it runs with low noise. Pressure, flow and control schemes can be customized to your working conditions, with intuitive pressure display and multi-group valve control outputs. Widely paired with lift platforms, dock levelers, freight elevators and other hydraulic equipment, it delivers stable performance and sensitive response, with overload protection for safe and reliable operation of the whole hydraulic system.

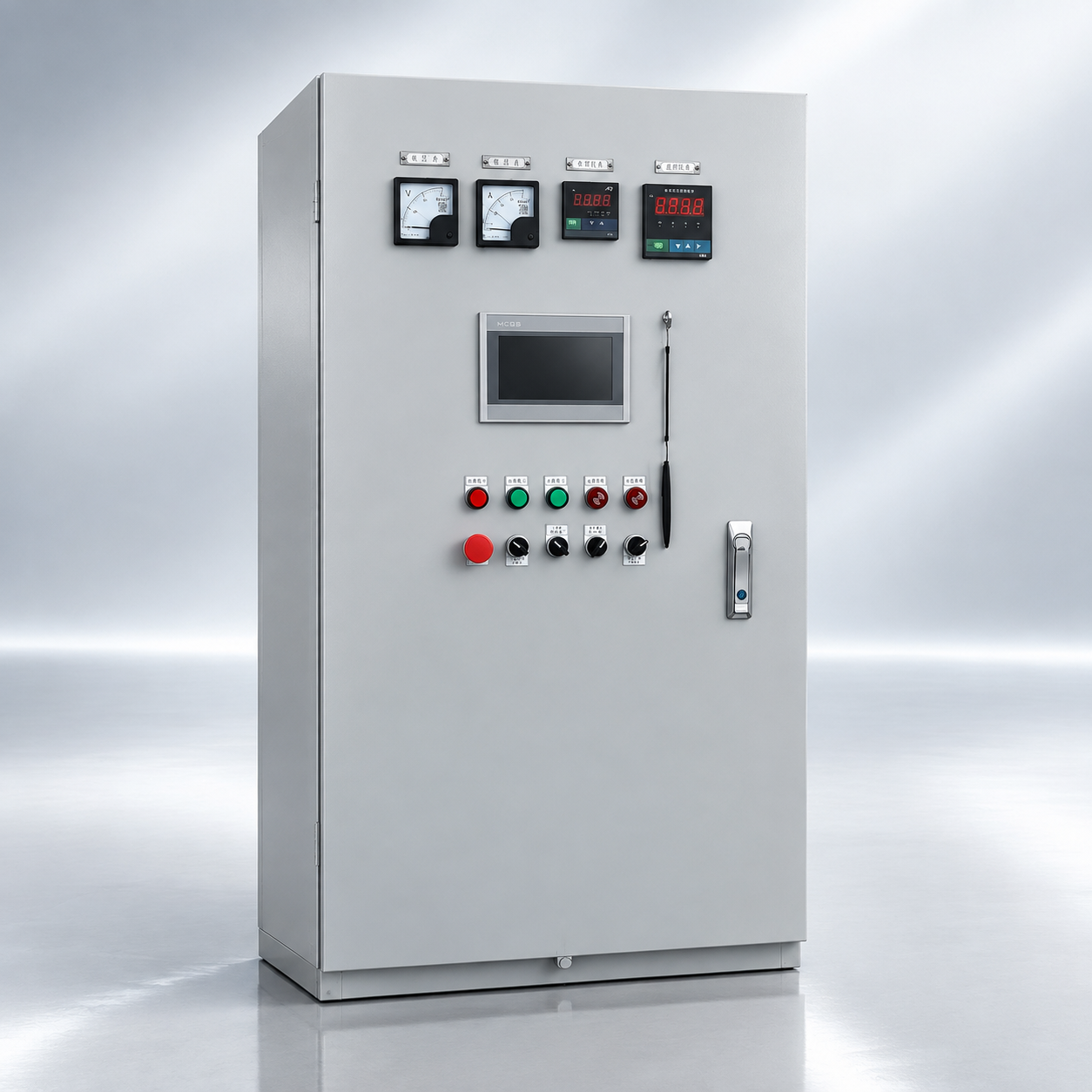

Electric Control System
As the control core of the complete hydraulic machinery, the electric control cabinet integrates a touch screen, voltmeter, ammeter, digital display instruments and operation buttons for real-time monitoring of equipment running parameters. It supports local start/stop and mode switching, with overload protection, fault alarm and emergency stop. The cabinet offers reliable protection and tidy wiring for intuitive, simple operation. It can be paired with lift platforms, dock levelers and other hydraulic equipment; the control logic can be customized on demand to keep equipment actions under stable control and ensure safe, intelligent operation of the whole machine.

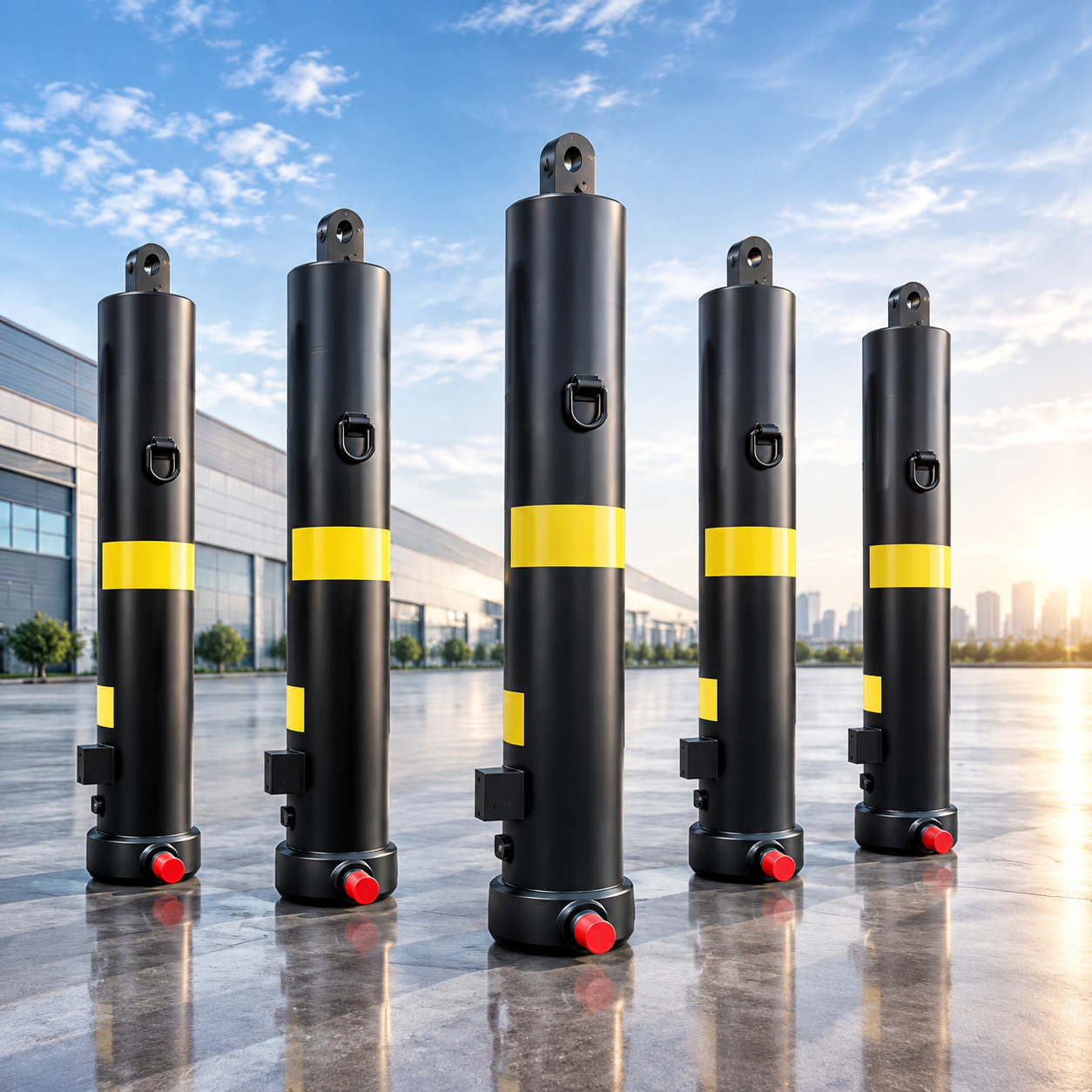

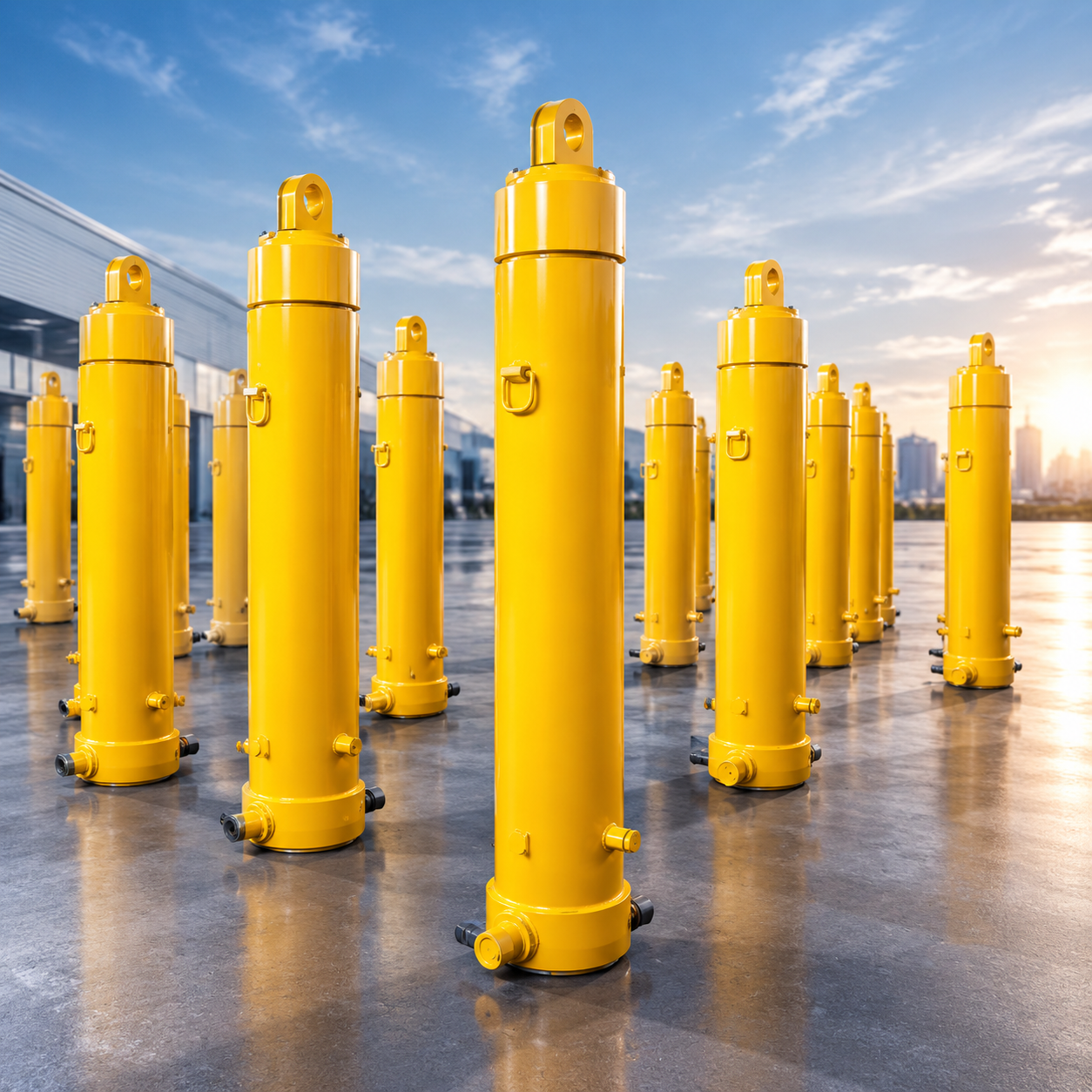

Hydraulic Cylinder
The hydraulic cylinder is the actuating element of the hydraulic system, converting hydraulic energy into mechanical energy to achieve linear lifting, pushing and pulling. The cylinder barrel is machined from high-strength seamless steel tube; the piston rod is wear-resistant and corrosion-resistant, and the seals perform excellently without oil leakage. It offers strong load capacity and smooth, reliable running. Suitable for lift platforms, dock levelers, freight elevators and other hydraulic equipment, with customizable bore, stroke and mounting style to fit various working conditions — durable, and ensuring stable power output for your equipment.

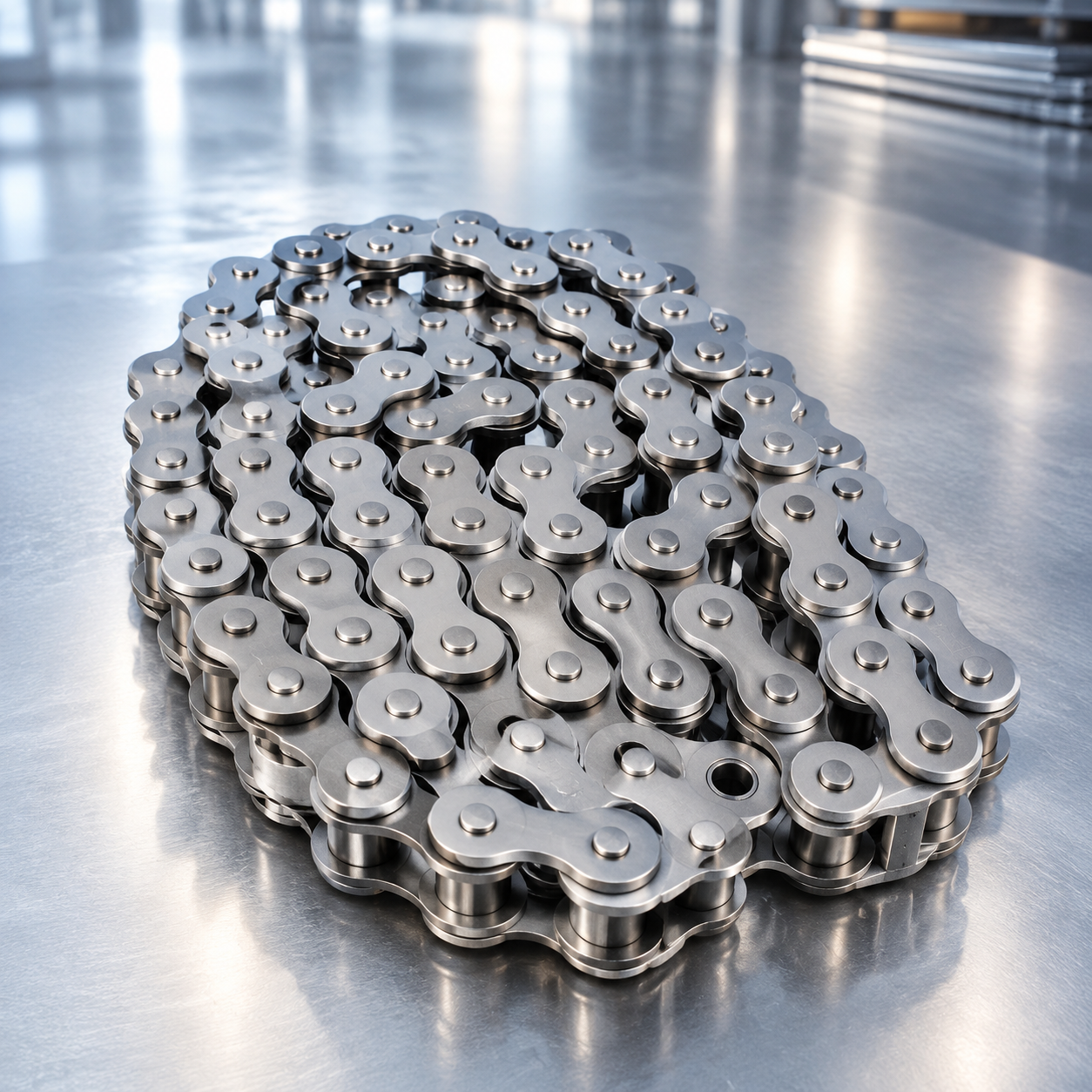

Plate Chain for Cargo Lift
The plate chain is the core load-bearing transmission component of freight elevators and lift platforms. Made of quality alloy steel and treated with quenching and tempering, it provides high strength, tensile and wear resistance, and excellent load-bearing performance. Precision-machined chain plates articulate smoothly, run with low noise, and resist deformation and breakage. It fits all kinds of fixed freight elevators and scissor lift equipment; specifications can be customized on demand — stable load capacity and a long fatigue life guarantee long-term safe and smooth operation of lifting equipment.

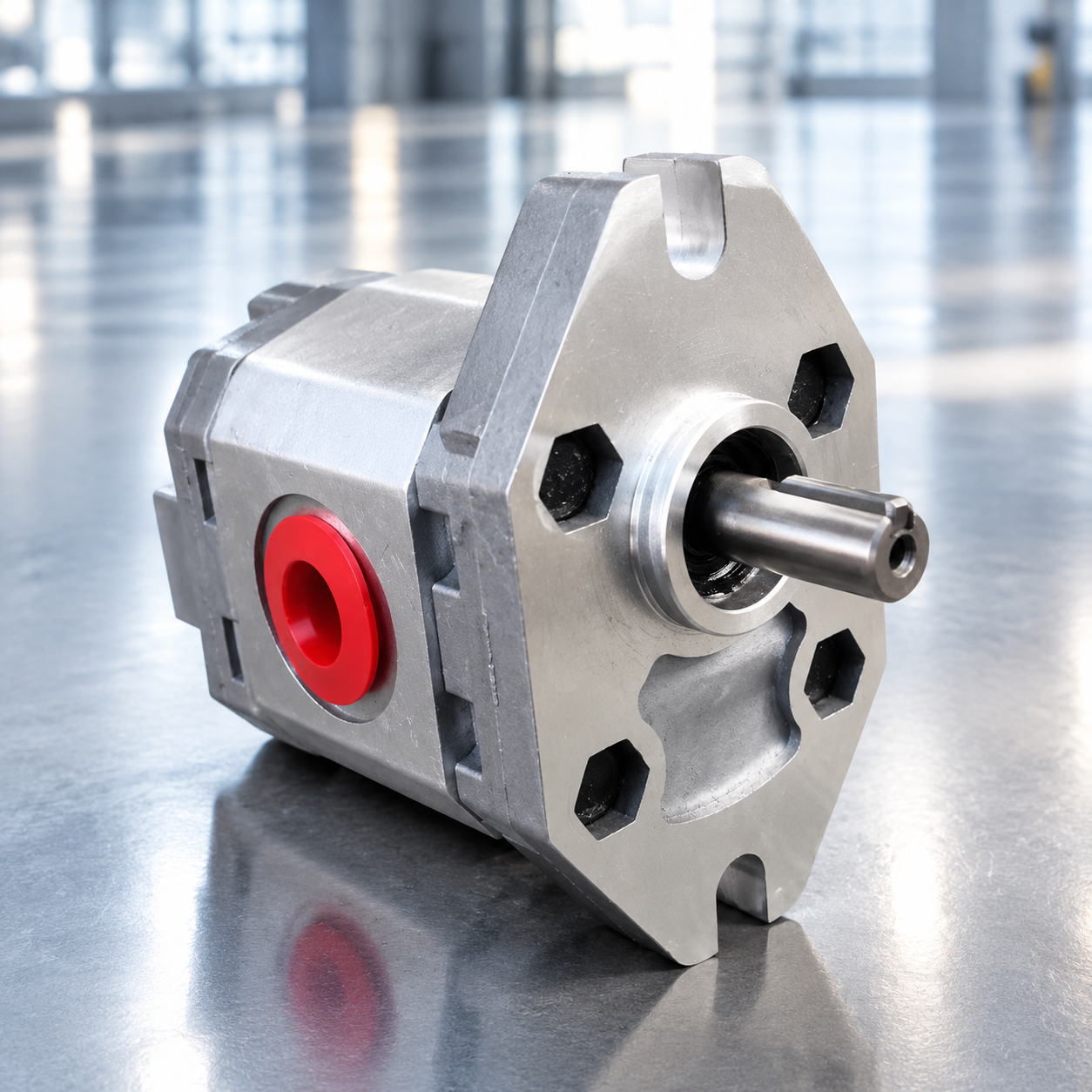

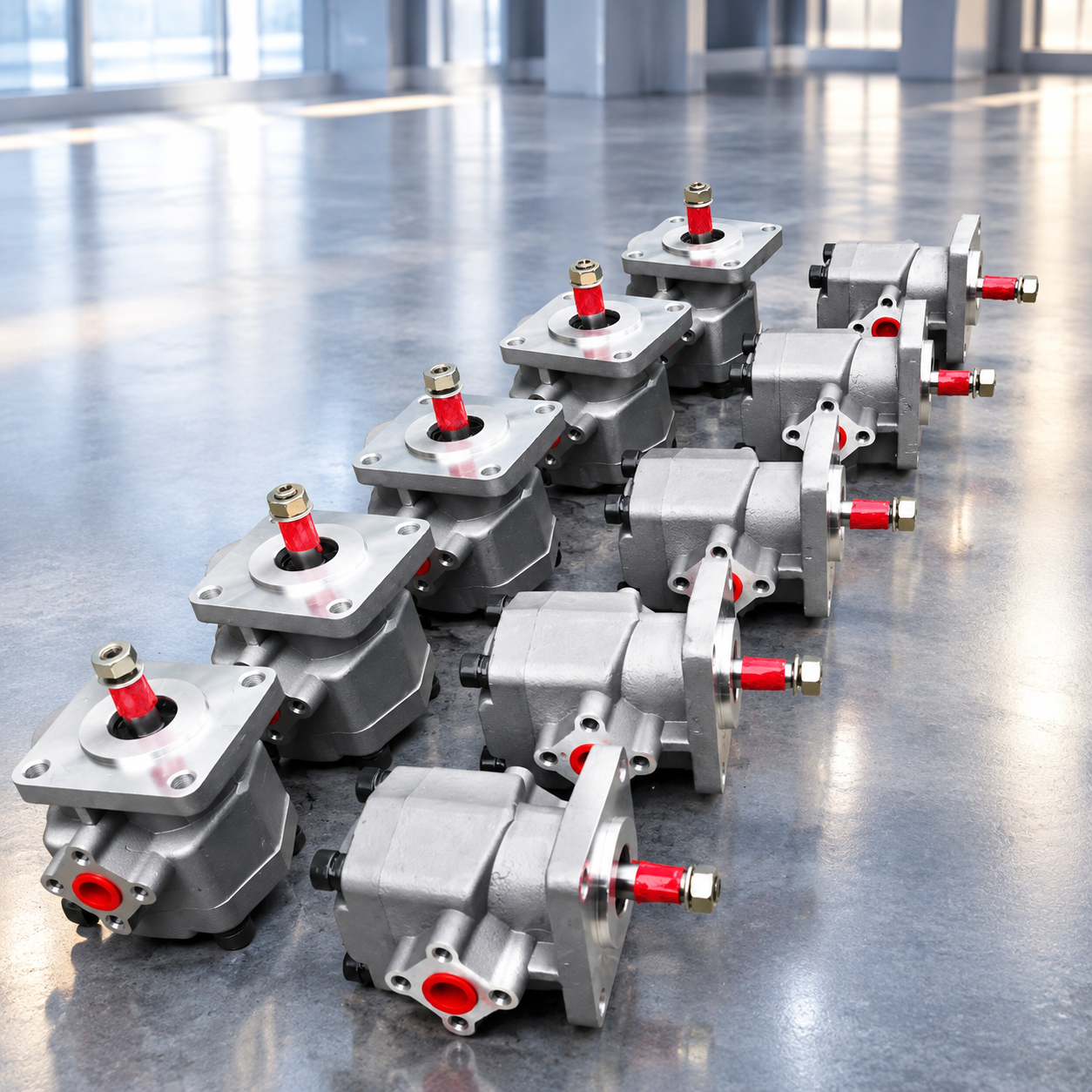

Hydraulic Gear Pump
The hydraulic gear pump is the core power element of the hydraulic power unit. Relying on gear meshing to deliver hydraulic oil, it provides a pressurized oil source for the whole hydraulic system. The pump body is made by precision casting, and the internal gears are hardened — wear-resistant, durable and highly volumetrically efficient. Compact, easy to install, smooth and quiet, with strong anti-contamination capability. Widely paired with lift platforms, freight elevators, dock levelers and other hydraulic equipment; multiple specifications are available to match different flow and pressure requirements with stable power output.

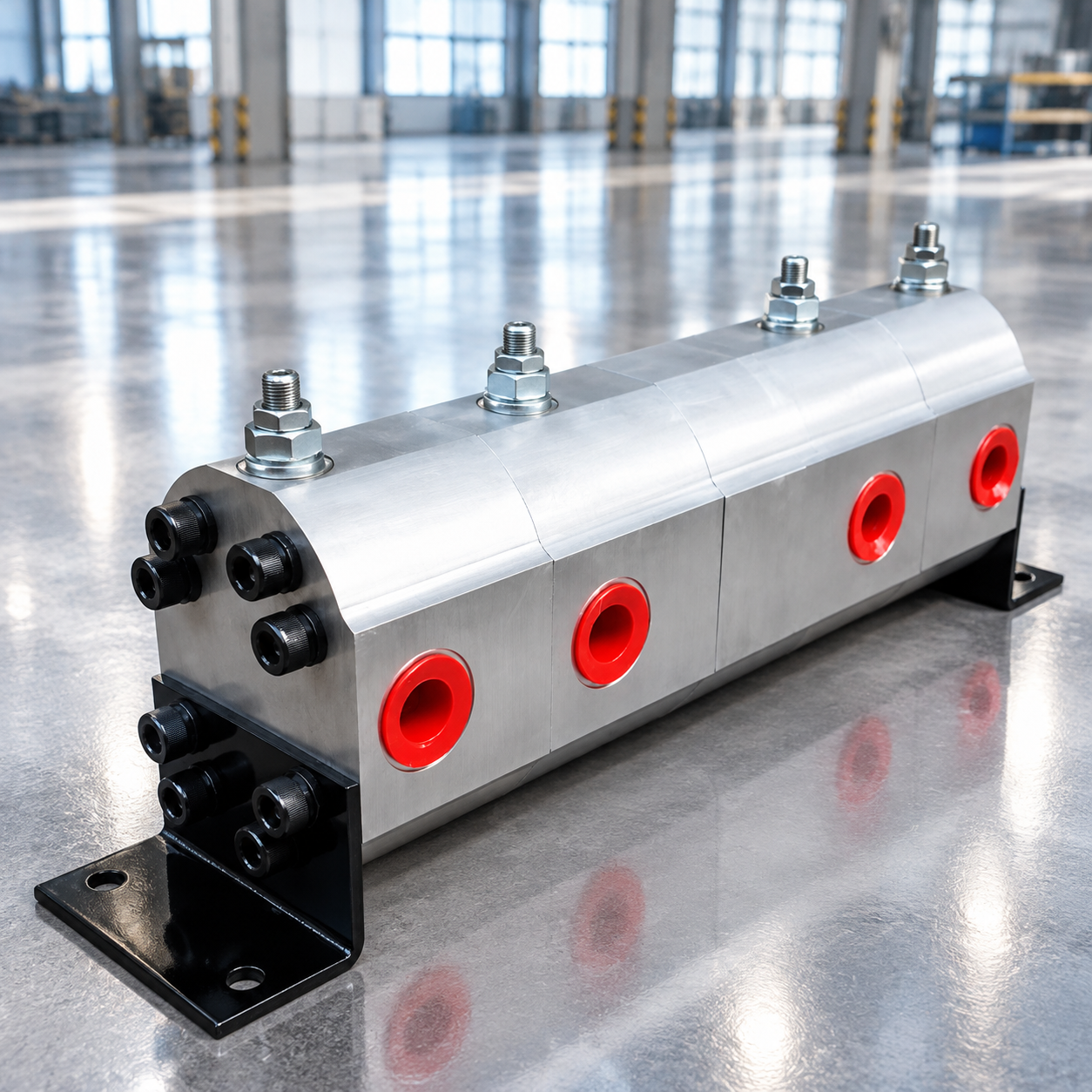

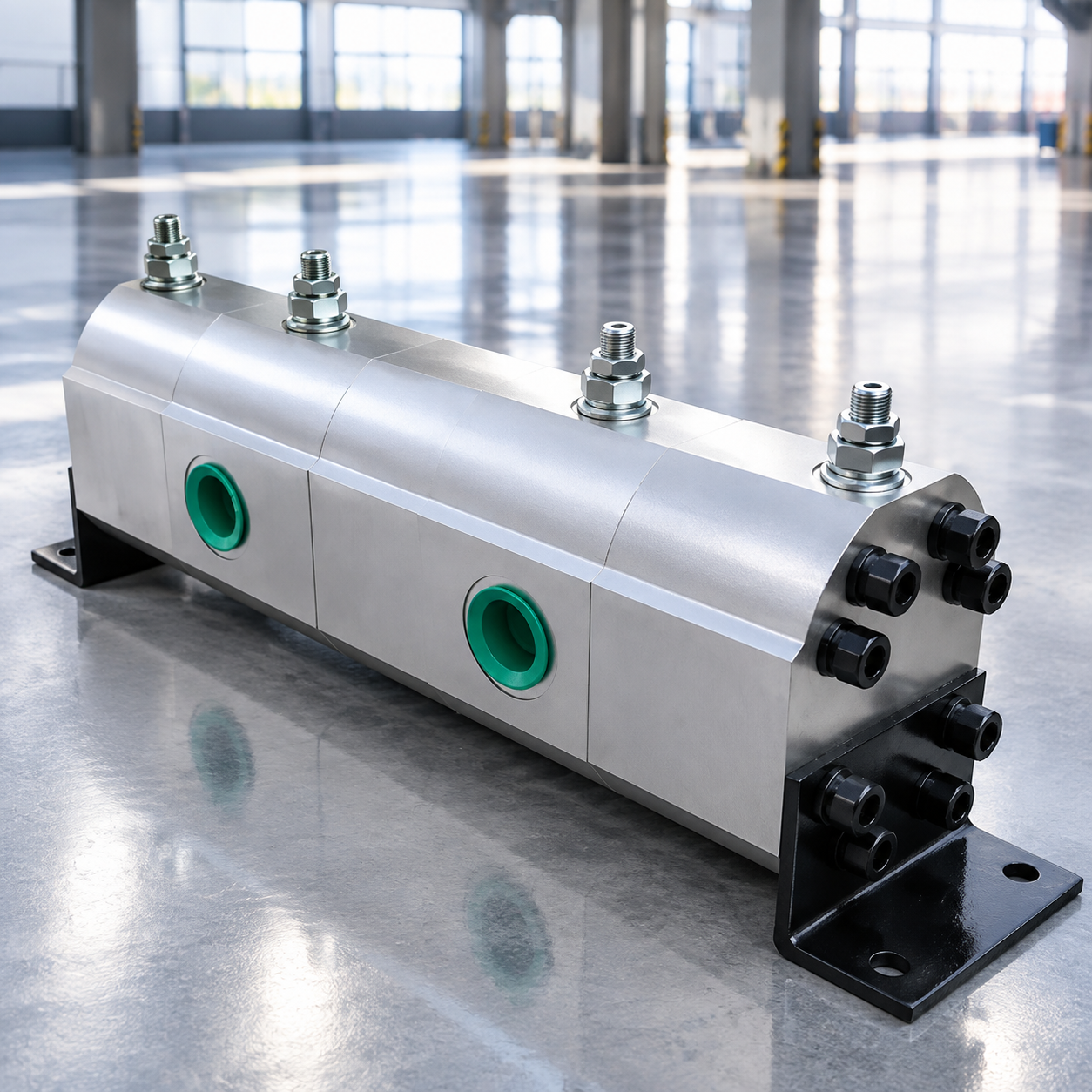

Synchronous Motor (Flow Divider)
The hydraulic synchronous motor, also called a flow divider, splits the input hydraulic oil precisely to achieve synchronized lifting of multiple cylinders. One-in-two-out and one-in-four-out specifications are available. The body is made of aluminum alloy for light weight and good heat dissipation, with a precision gear structure inside for high dividing accuracy and a small synchronization error. Stable and wear-resistant, it suits lift platforms, multi-cylinder freight elevators and other equipment — keeping multiple cylinders consistent, effectively preventing platform tilt and improving operational safety. Installation and maintenance are simple, and selection can be customized to customer working conditions.
Need a different model? Send us your requirement.
Tell us truck size, cargo type, capacity and site conditions. Our engineers reply with a solution and quotation within one working day.
